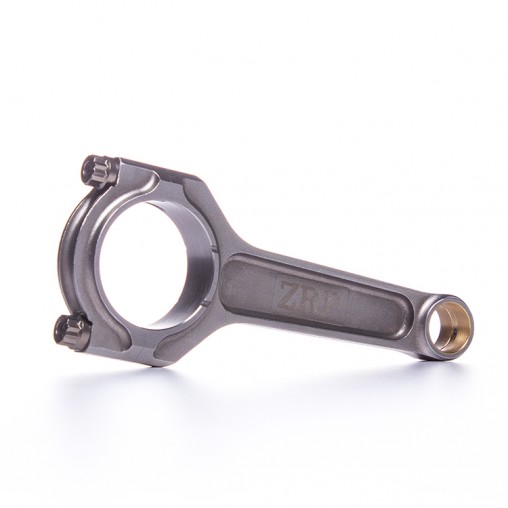

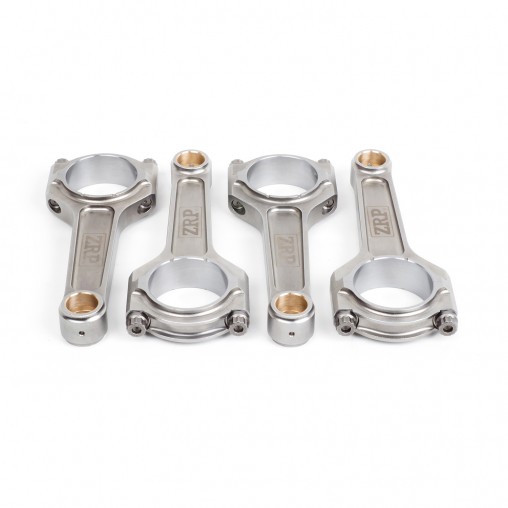

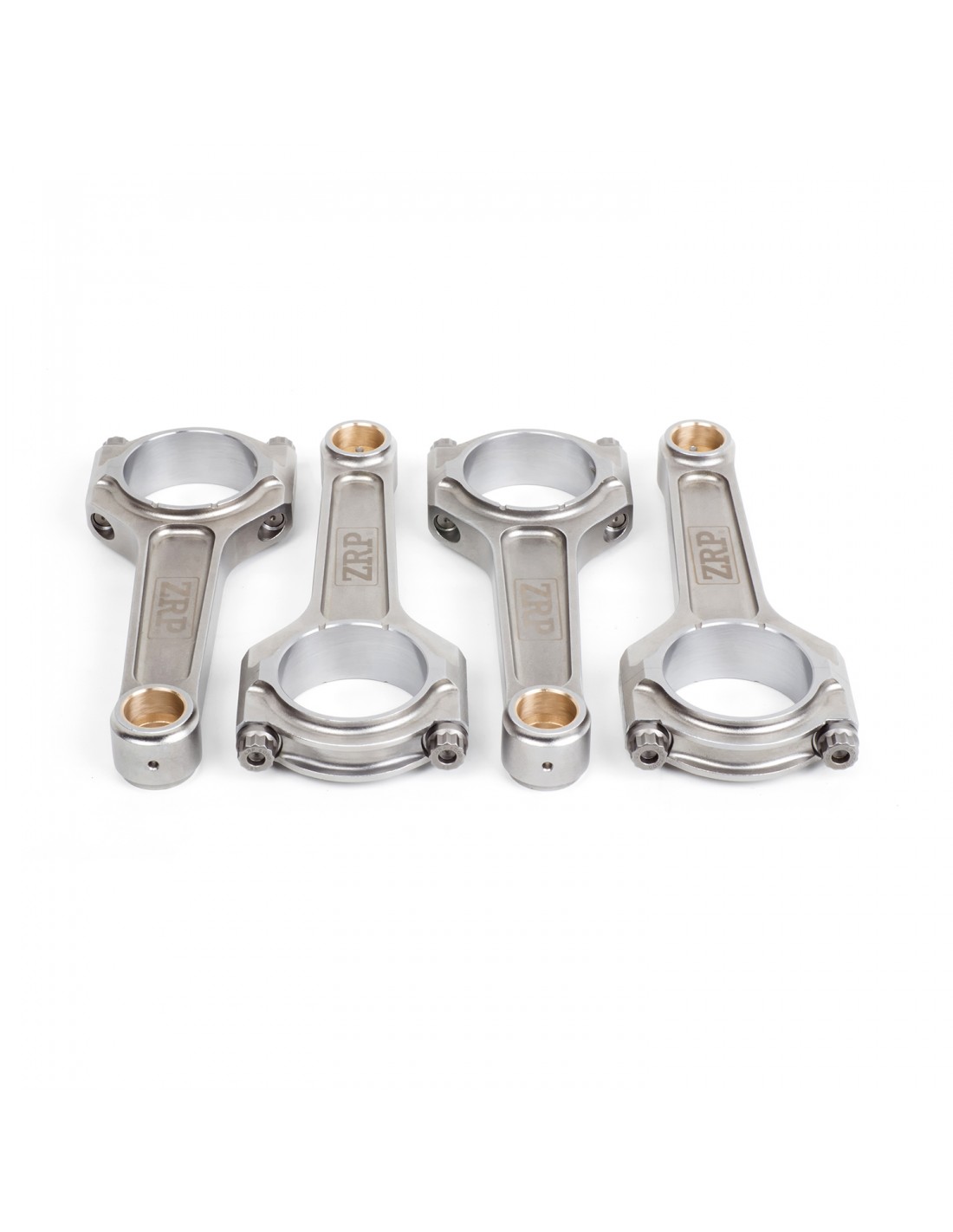

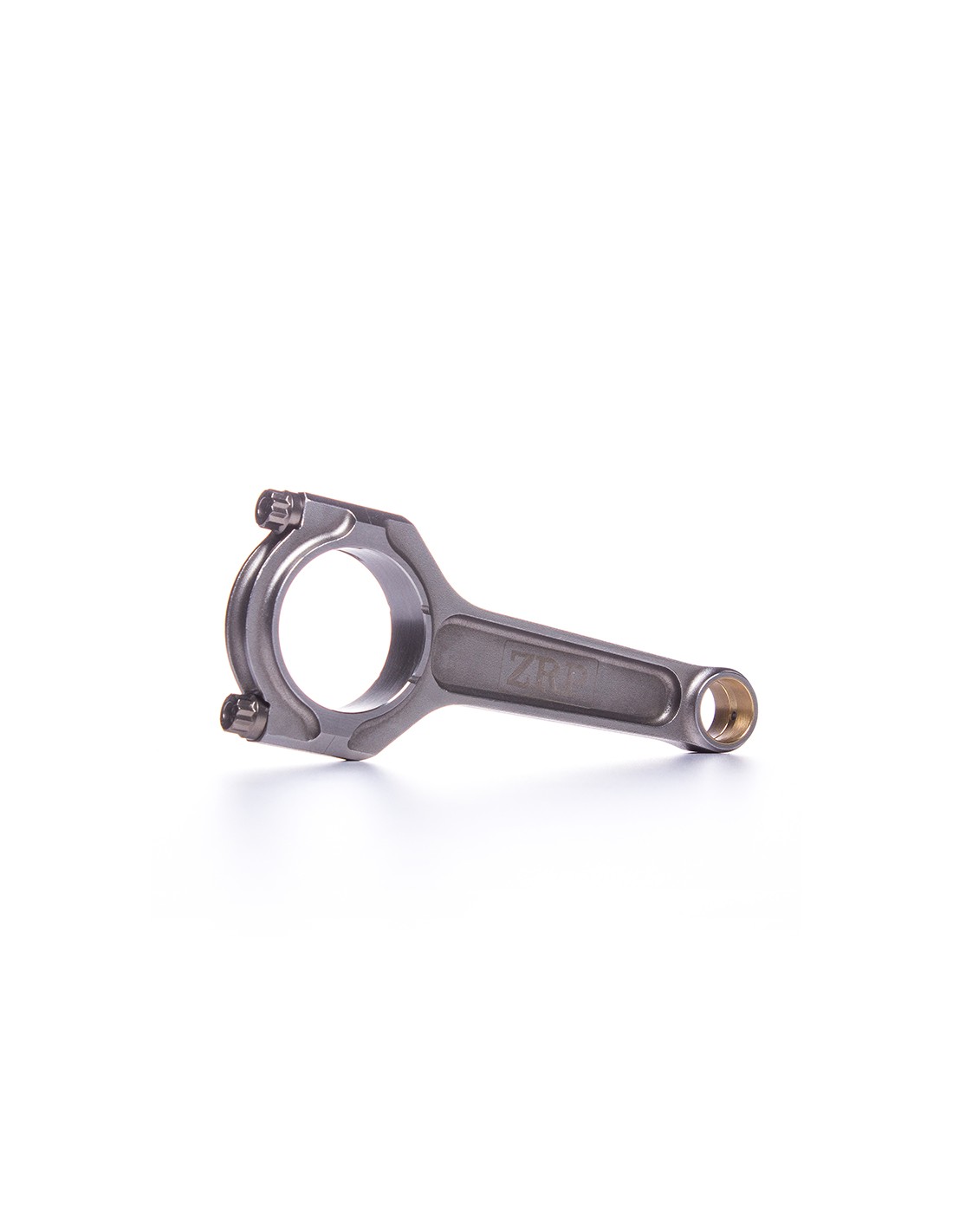

Audi 2.0L TSI Chain Driven HD Series Connecting Rods with L19 bolts
Audi 2.0L TSI Chain Driven HD Series Connecting Rods with L19 bolts
Audi 2.0L TSI Chain Driven HD Series Connecting Rods with L19 bolts
  • -122.48 €
Audi 2.0L TSI Chain Driven HD Series Connecting...
Audi 2.0L TSI Chain Driven HD Series Connecting...
Audi 2.0L TSI Chain Driven HD Series Connecting...

Audi 2.0L TSI Chain Driven HD Series Connecting Rods with L19 bolts

R-AUD-009-I-L19
748.00 € -122.48 €
870.48 €
144.00mm x 21.00mm 21.90 B.E.
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 748.0 € 2 installments x 374.0 € 3 installments x 249.3 € 4 installments x 187.0 € 5 installments x 149.6 € 6 installments x 124.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-AUD-009-I-L19
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
Volkswagen, Audi
Shape
I-Beam
Material
High Tensile Steel 4340
Length
144.00
Small End
21.00mm
Bolt Size
3/8"
Application
2.0L TFSI / TSI (Chain Driven Engine)
Big End
50.60
B.E Width
21.90
Set Of
4
Pin Size
21.00
Series
Heavy Duty
Engine
2.0 TSI (EA888) Gen.1
Note
Non-Tapered Pin End

Audi 2.0L TSI HD Series Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

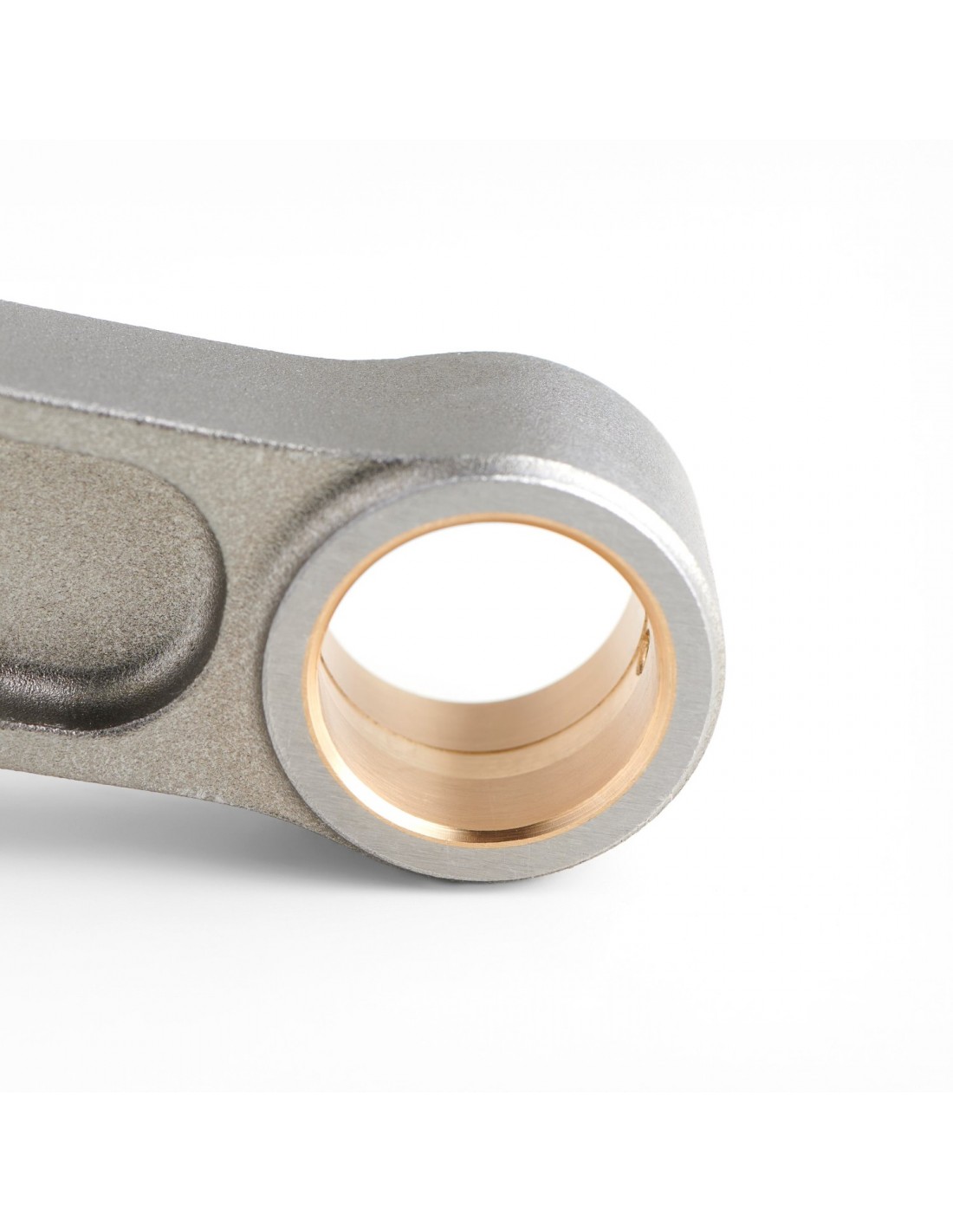

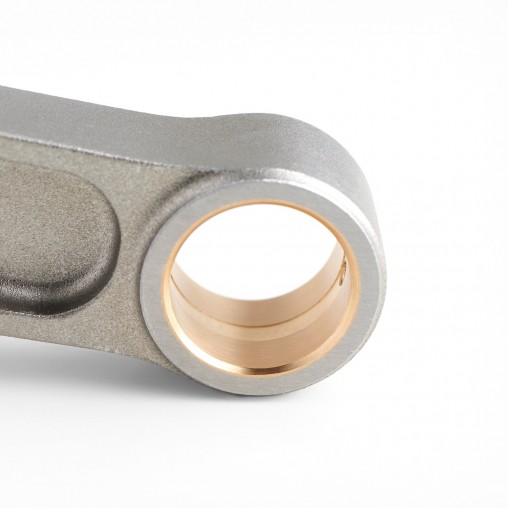

  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
  • Heavy Duty series (H.D) rods for High HP/Boost applications.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
