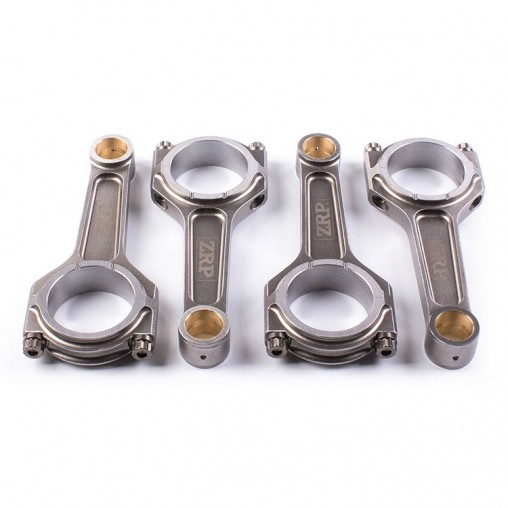

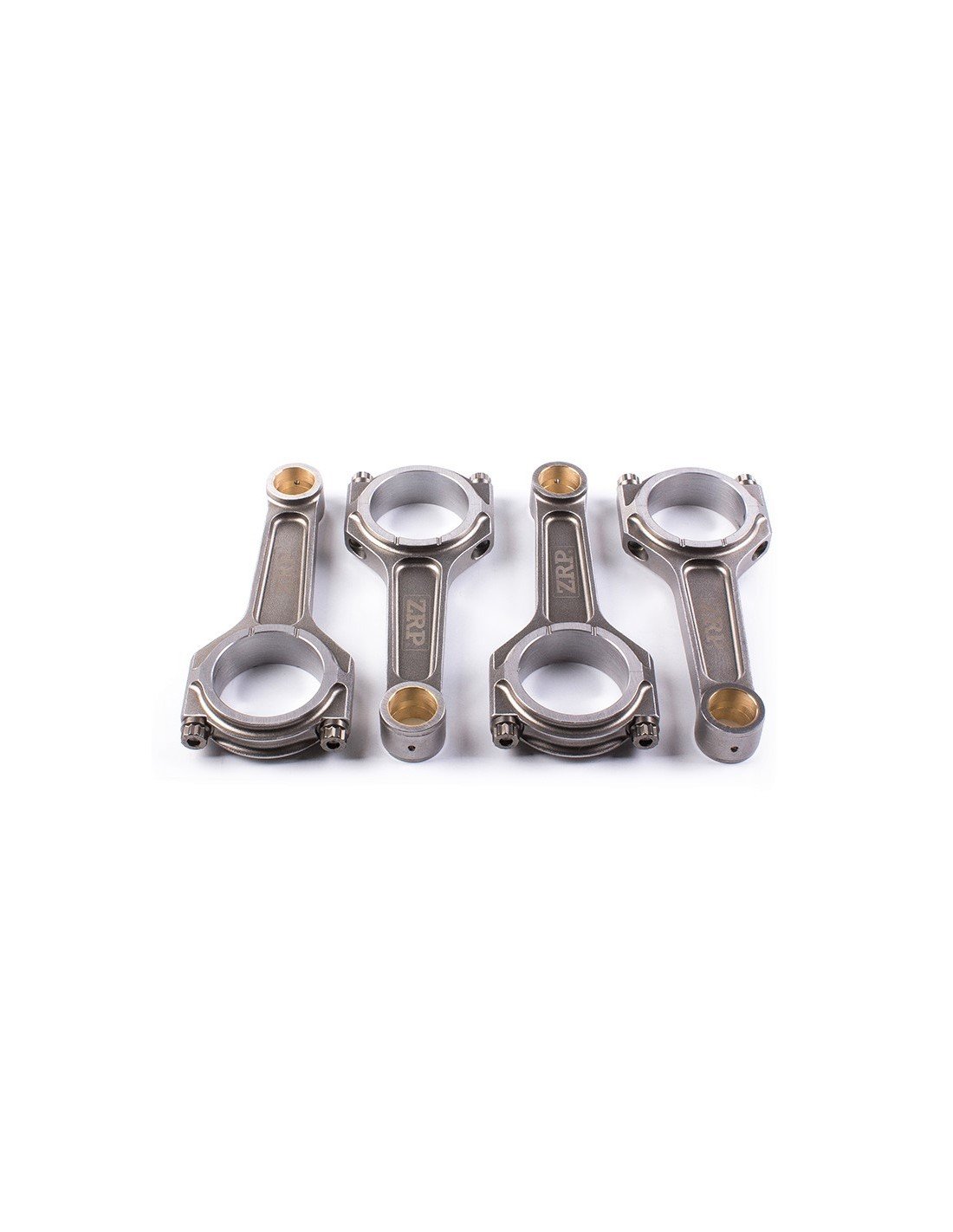

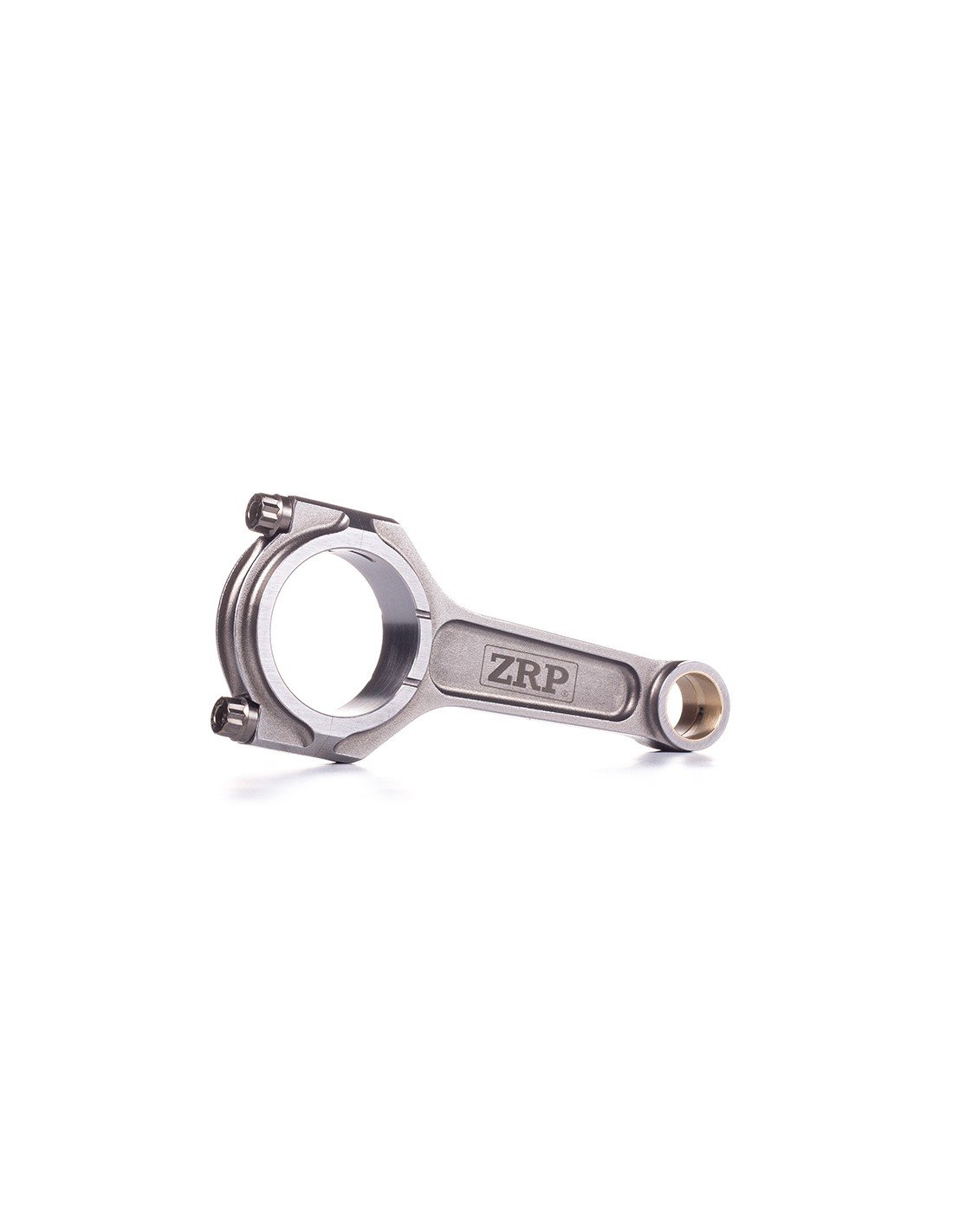

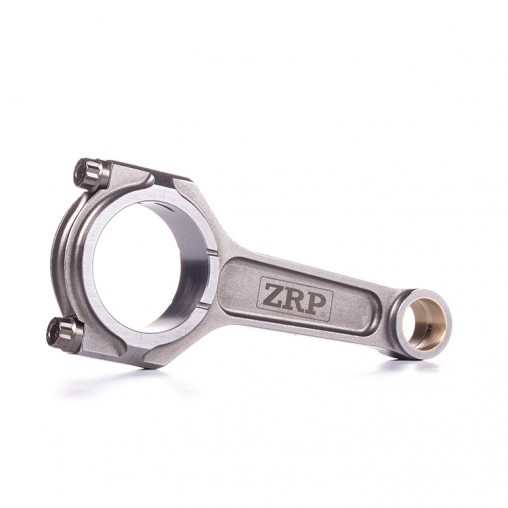

BMW 2.0L M10 2002 Connecting Rods with L19 bolts
BMW 2.0L M10 2002 Connecting Rods with L19 bolts
BMW 2.0L M10 2002 Connecting Rods with L19 bolts
  • -109.00 €
  • New
BMW 2.0L M10 2002 Connecting Rods with L19 bolts
BMW 2.0L M10 2002 Connecting Rods with L19 bolts
BMW 2.0L M10 2002 Connecting Rods with L19 bolts

BMW 2.0L M10 2002 Connecting Rods with L19 bolts

R-BMW-008-I-L19
664.00 € -109.00 €
773.00 €
135.00mm x 22.00mm
Upon Order
Installments plan
Up to 6 installments with credit card
1 installment x 664.0 € 2 installments x 332.0 € 3 installments x 221.3 € 4 installments x 166.0 € 5 installments x 132.8 € 6 installments x 110.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy


BMW 2.0L M10 2002 Connecting Rods

ADDITIONAL FEATURES


  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

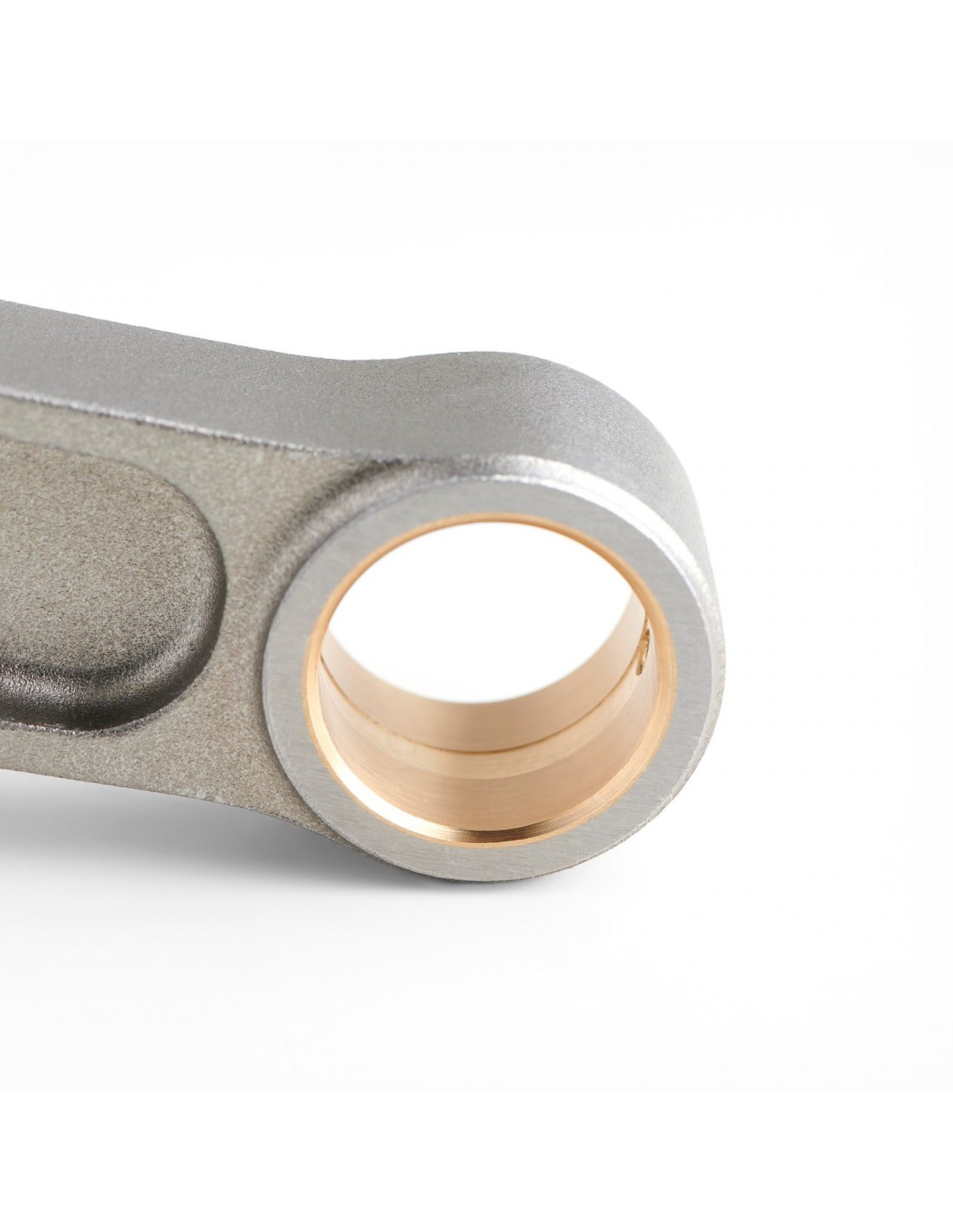

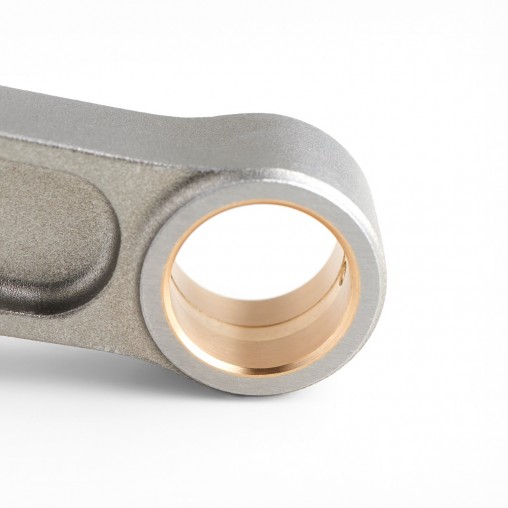

  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES


  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
Shape
I-Beam
Material
High Tensile Steel 4340
Length
135.00
Bolt Size
3/8"
Application
2.0L M10 2002
Big End
52.00
B.E Width
23.90
Set Of
4
Pin Size
22.00
Series
-
