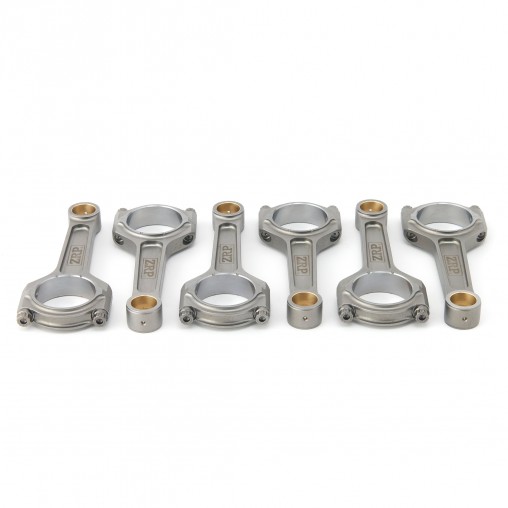

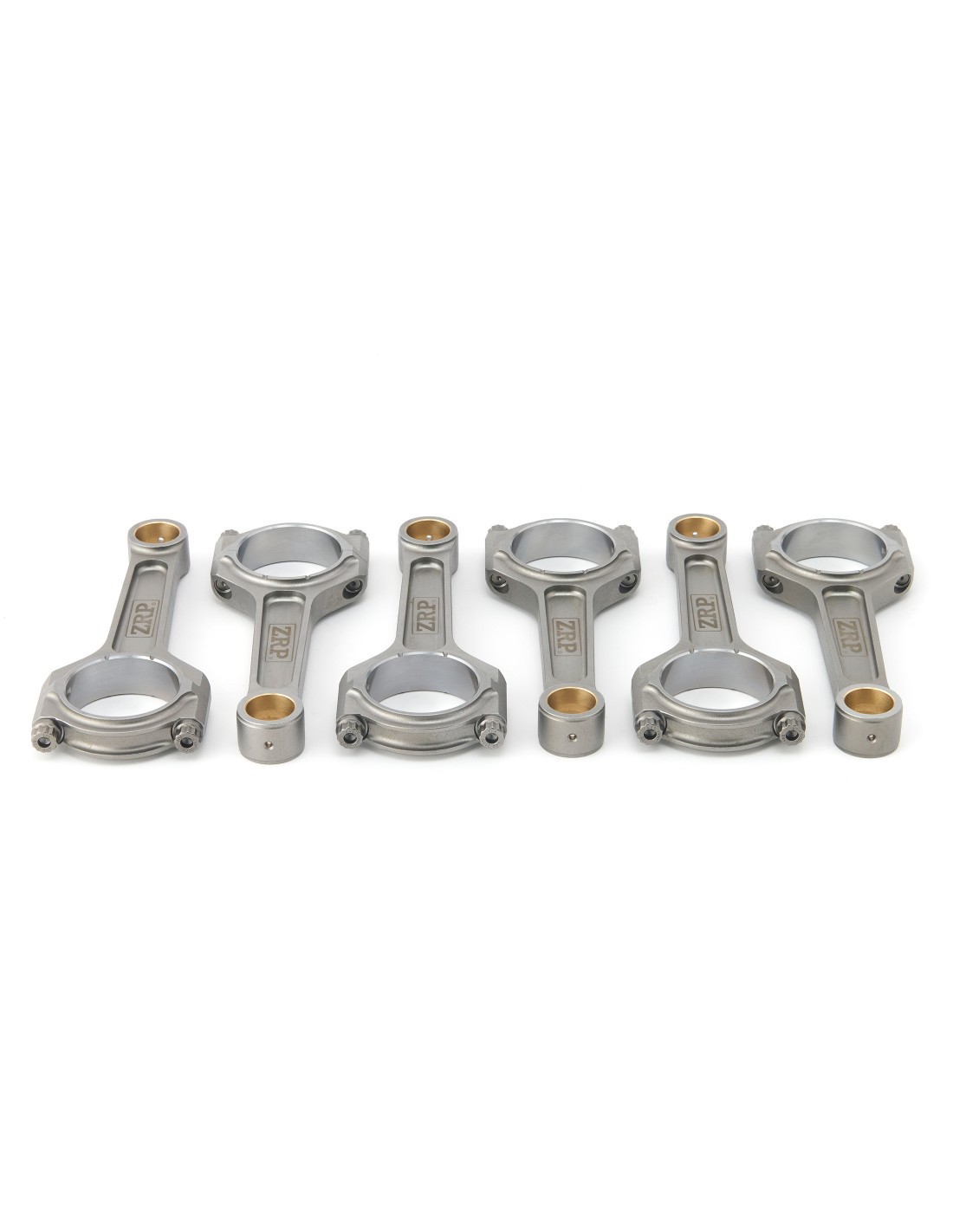

BMW 3.0L S58 ZRP I-Beam Connecting Rods
  • -108.20 €
BMW 3.0L S58 ZRP I-Beam Connecting Rods

BMW 3.0L S58 ZRP I-Beam Connecting Rods

R-BMW-024-I
890.00 € -108.20 €
998.20 €
151.10mm x 23.00mm
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 890.0 € 2 installments x 445.0 € 3 installments x 296.7 € 4 installments x 222.5 € 5 installments x 178.0 € 6 installments x 148.3 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-BMW-024-I
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
BMW
Shape
I-Beam
Material
High Tensile Steel 4340
Length
151.10
Small End
23.00
Bolt Size
3/8"
Application
M2 Series G87 2023-Present / M3 Series G80 2021-Present / M4 Series G82/G83 2021-Present / X3 M Series F97 2019-Present / X4 M Series F98 2019-Present
Big End
53.60
B.E Width
22.40
Set Of
6
Displacement
3.0L
Pin Size
23.00
Series
Standard
Engine
3.0L S58B30
Note
Non-Tapered Pin End / Straight PE
The I-Beam Connecting rods for BMW S58B30 are built from the finest raw materials, 4340 high tensile steel with a specially optimized shape for high performance and extreme durability. These feature “straight cut” pin ends for increased durability, so they can only be used with aftermarket pistons. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and have radial grooves acting as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process ensure a perfect fitment while optimizing the oil clearances. Bend and twist are tightly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade, and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes
  • “Straight Cut” Pin End – Suitable for aftermarket pistons
  • Dowel sleeves for perfect fit and accurate re-assembling
  • Lipped Cap Relief for improved big-end integrity at extreme application
  • Grooves in Thrust Face for weight reduction
Technical Features of ZRP Connecting Rods
  • I-Beam Shape for extra rigidity
  • Two-Piece forging for great strength
  • Shot Peening for improved fatigue life
  • Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
  • Double ribbed caps for added support
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances, precise as much as 0.0002"
  • Center to center is maintained under .001" tolerance
  • Finite Element Analysis (FEA) Computer generated stress analysis of con rods
  • Optimal balancing for weight matched sets of ± 1gram
