Citroen / Peugeot 2.0L 16v XU10J4 ZRP Connecting Rods

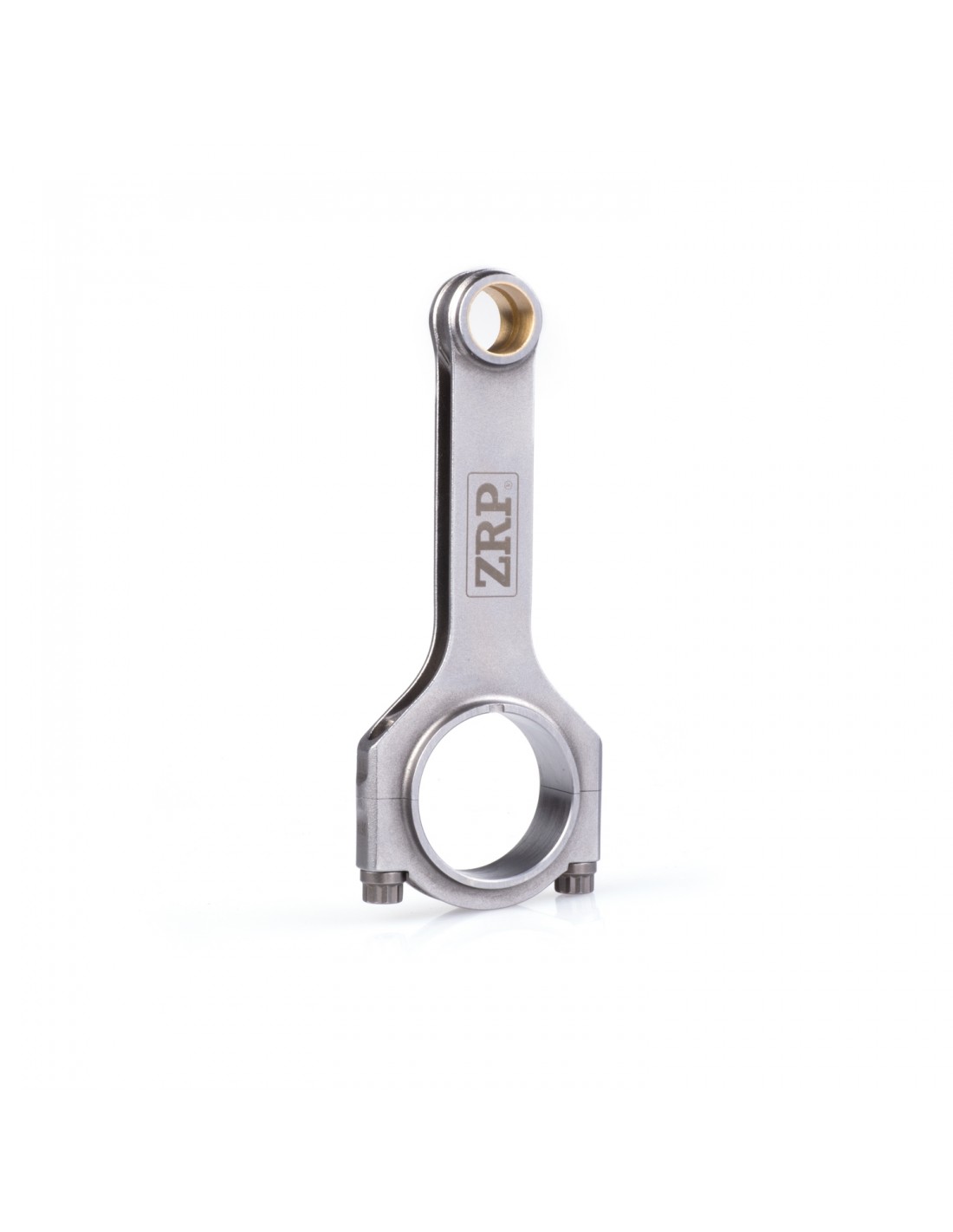

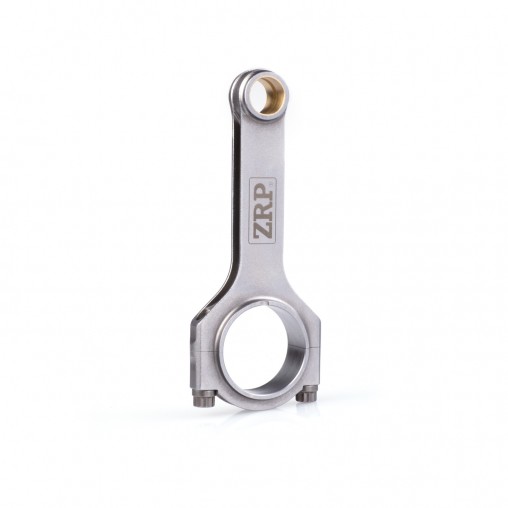

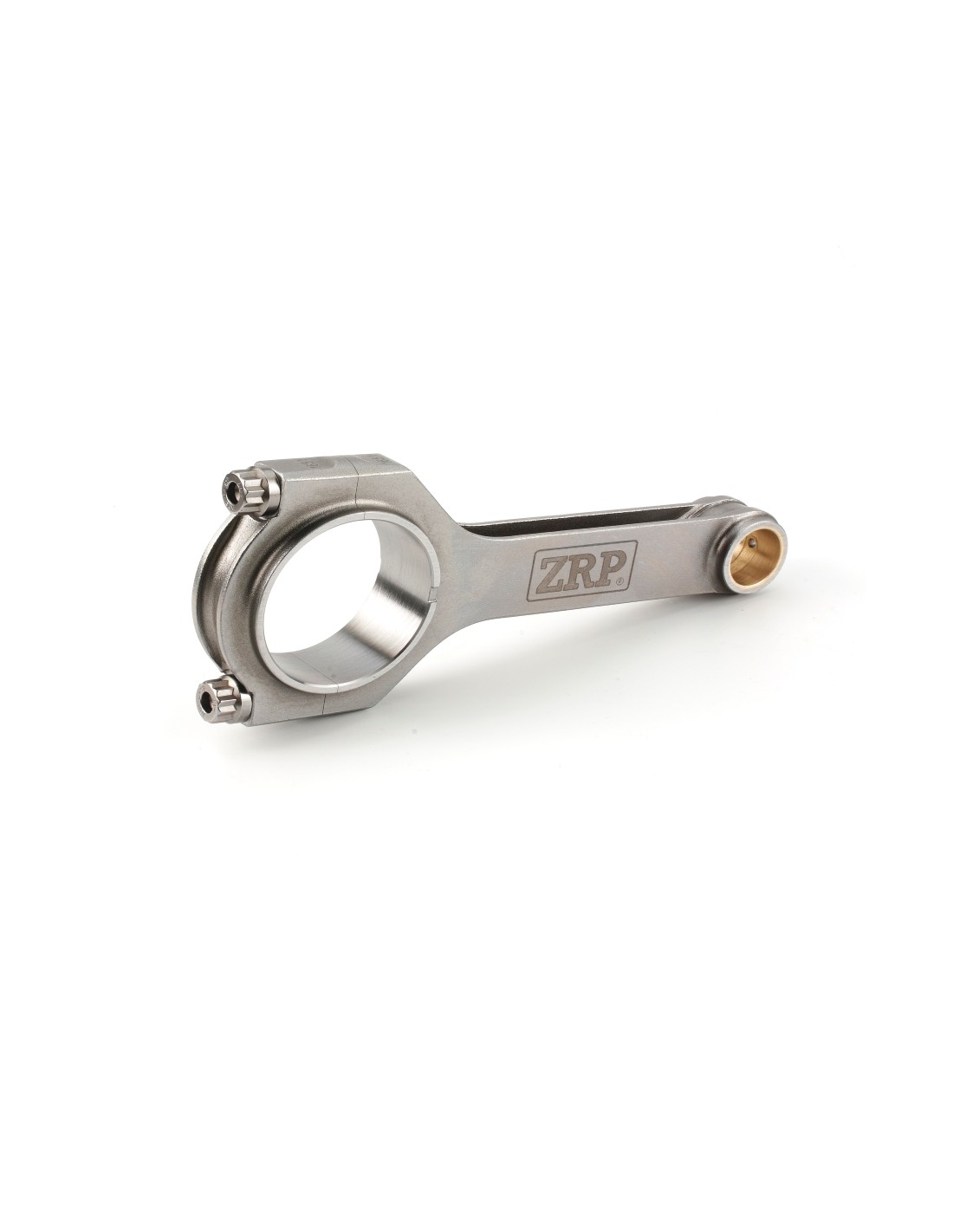

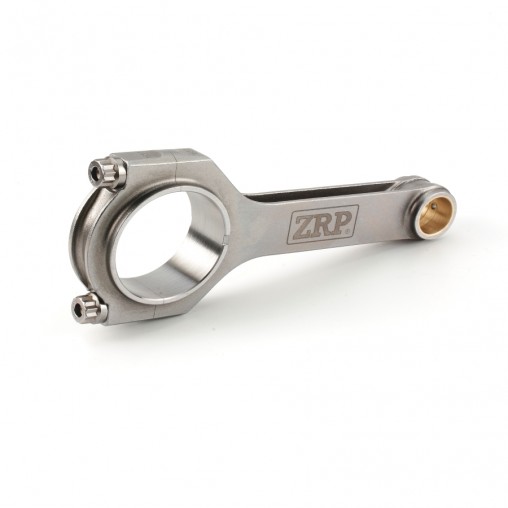

ZRP H-Beam Connecting Rods for the Peugeot 2.0L 16V XU10J4 engine are precision-engineered from premium 4340 high-tensile chromoly steel, designed to deliver exceptional strength, durability, and reliability under extreme performance conditions. Optimized for high RPM operation and motorsport applications, these rods provide an ideal balance between reduced reciprocating mass and structural rigidity. The H-beam profile maximizes strength-to-weight ratio, while the small end features a straight-cut pin design requiring aftermarket pistons. Ribbed reinforcement minimizes distortion under high inertial loads without adding unnecessary weight. Wrist pin bushings are crafted from AMPCO® 18 bronze alloy for superior wear resistance and fatigue strength, with precision radial oil grooves functioning as integrated oil reservoirs for consistent lubrication. All rods undergo multi-stage heat treatment for maximum core strength and dimensional stability, followed by shot peening to relieve residual stresses and improve fatigue life. CNC machining ensures extremely tight tolerances, with center-to-center maintained under 0.001" and machining accuracy up to 0.0002". Bend, twist, and big-end geometry are tightly controlled, optimizing performance and longevity.

Additional machining processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Thrust Face Grooves for weight reduction without compromising strength

• Two-Piece Forging: Provides exceptional strength and durability.
• Shot Peening: Enhances fatigue life and reliability.
• Magnaflux Inspection: Guarantees consistent material integrity.
• Double-Ribbed Caps: Reinforce structural support under extreme loads.
• Multi Stage Heat Treatment: Optimizes strength, dimensional stability and fatigue resistance.
• CNC Machining: Delivers superior tolerances and precise oil clearances.
• Finite Element Analysis (FEA): Validates performanceunder high stress.
• Optimal Weight Balancing: Rods matched within  ± 1gram for consistent reciprocating mass.

Each set includes ARP 2000 cap fasteners rated at 220,000 psi, with optional ARP L19 fasteners (260,000 psi) available as an upgrade. Kits come complete with ARP moly lubricant and full installation instructions.

Engineered for high-performance street, track, turbocharged and motorsport applications, ZRP H-Beam Connecting Rods provide unmatched durability, precision, and performance consistency.
