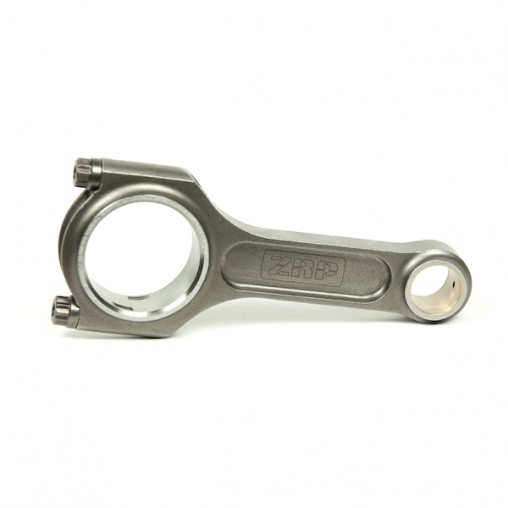

Fiat Uno . Punto / 1.6L Tempra Connecting Rods with L19 bolts

Fiat 1.4L & 1.6L Punto / Uno / Tempra / Ritmo

• Between Centers - 128.50mm
• Big end - 48.63mm
• Small end - 22.00mm
• B.E Width - 25.40mm
• Bolt size - 3/8" ARP L19
• Qty in Kit - 4pcs

Additional machining processes:

• Aluminum - Silicon/ Bronze bushing with radial groove
• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods:

• Shot Peening for improved fatigue life
• Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard
• Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
• CNC machining for superior tolerances as tight as 0.0003"
• Optimal balancing for weight matched sets (+/- 1g)
• Center to center is held to 001" tolerance
• Finite Element Analysis FEA Computer generated stress analysis of con rods
• ARP L19 Rod Bolts rated to 260,000psi
• I-Beam Design - High tensile steel 4340
• Combination tested to over 700HP+

Supplied boxed into sets with ARP moly and full fitting instructions
