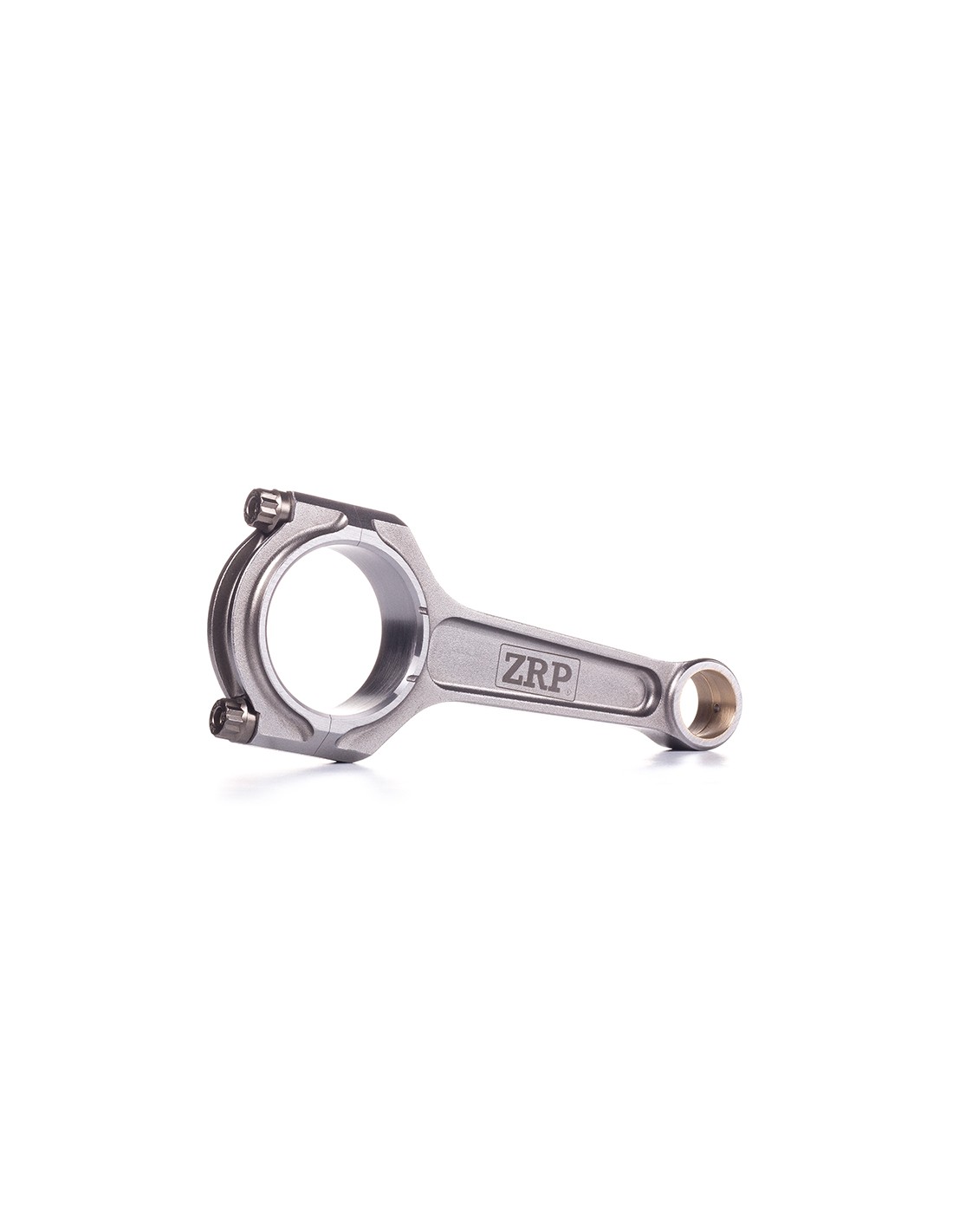

Ford 2.5L 20v Focus RS MKII with L19 bolts
Ford 2.5L 20v Focus RS MKII with L19 bolts
  • -138.80 €
Ford 2.5L 20v Focus RS MKII with L19 bolts
Ford 2.5L 20v Focus RS MKII with L19 bolts

Ford 2.5L 20v Focus RS MKII with L19 bolts

R-FOR-005-I-L19
847.00 € -138.80 €
985.80 €
143.00mm x 23.00mm
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 847.0 € 2 installments x 423.5 € 3 installments x 282.3 € 4 installments x 211.8 € 5 installments x 169.4 € 6 installments x 141.2 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-FOR-005-I-L19
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
Ford
Shape
I-Beam
Material
High Tensile Steel 4340
Length
143.00
Small End
23.00mm
Bolt Size
3/8"
Application
2.5L 20v Focus RS MKII
Big End
52.98
B.E Width
25.65

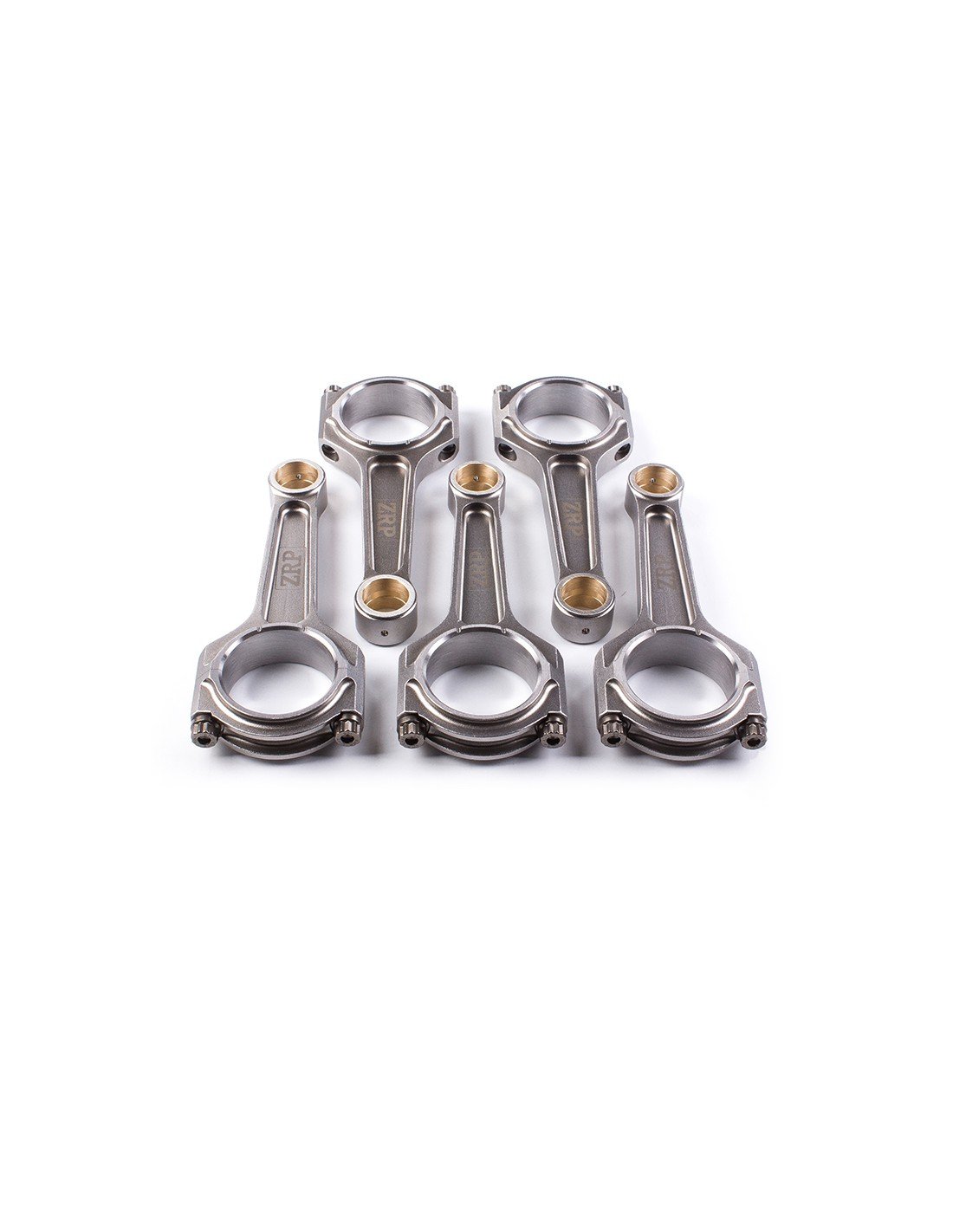

Set Of
5
Pin Size
23.00
Series
Standard
Engine
2.5L Focus RS
Note
-

Ford 2.5L 20v Focus RS MKII

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].
  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
