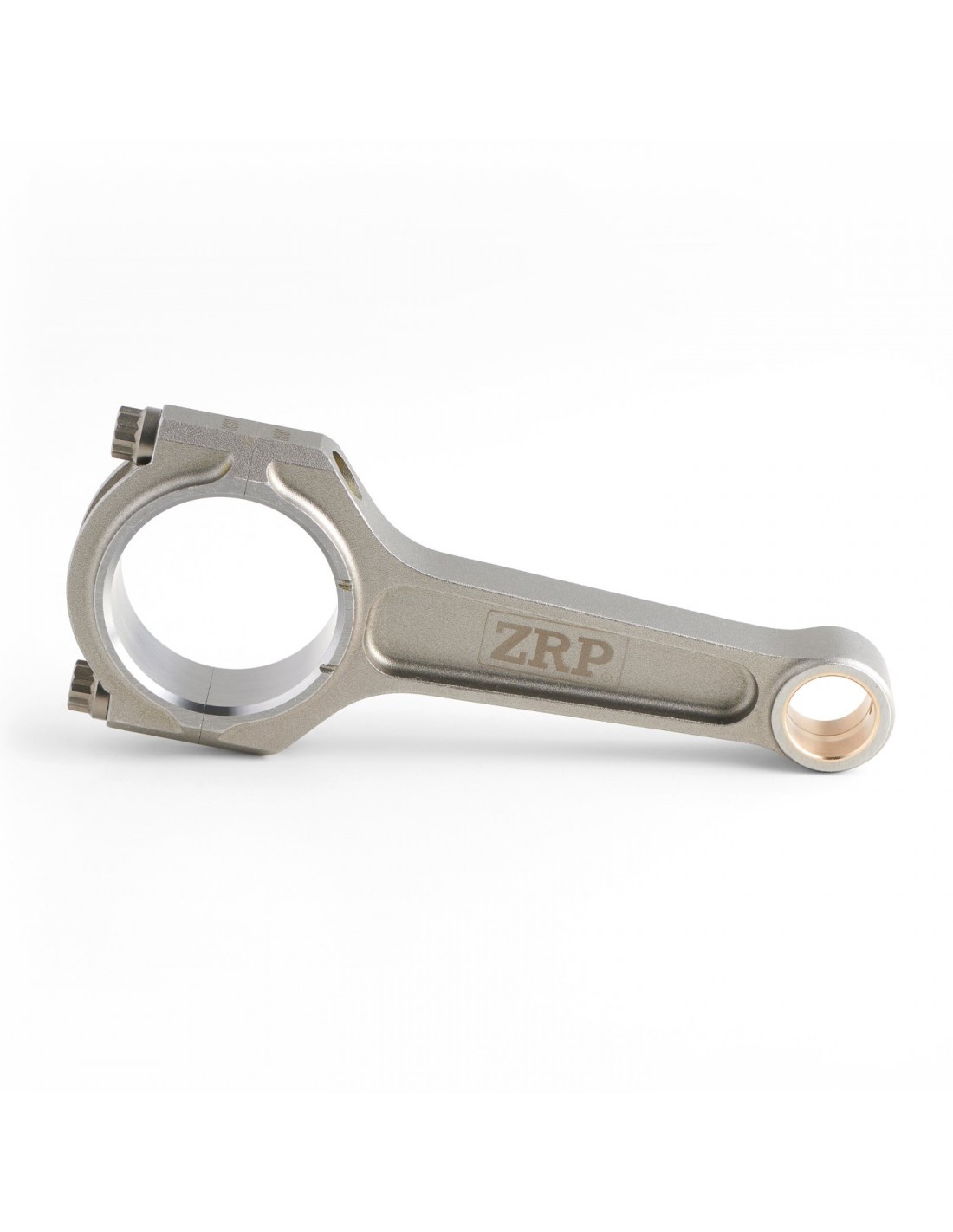

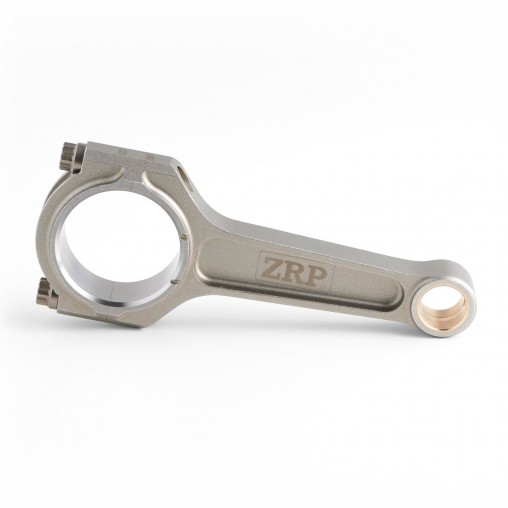

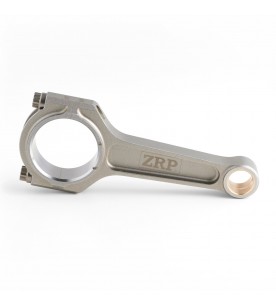

Ford 2.5L Focus ST I5 Turbo ZRP Connecting Rods
Ford 2.5L Focus ST I5 Turbo ZRP Connecting Rods
  • -139.00 €
  • New
Ford 2.5L Focus ST I5 Turbo ZRP Connecting Rods
Ford 2.5L Focus ST I5 Turbo ZRP Connecting Rods

Ford 2.5L Focus ST I5 Turbo ZRP Connecting Rods

R-FOR-010-I-L19
847.00 € -139.00 €
986.00 €
145.00mm x 21.00mm
Upon Order
Installments plan
Up to 6 installments with credit card
1 installment x 985.8 € 2 installments x 492.9 € 3 installments x 328.6 € 4 installments x 246.5 € 5 installments x 197.2 € 6 installments x 164.3 €


Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy

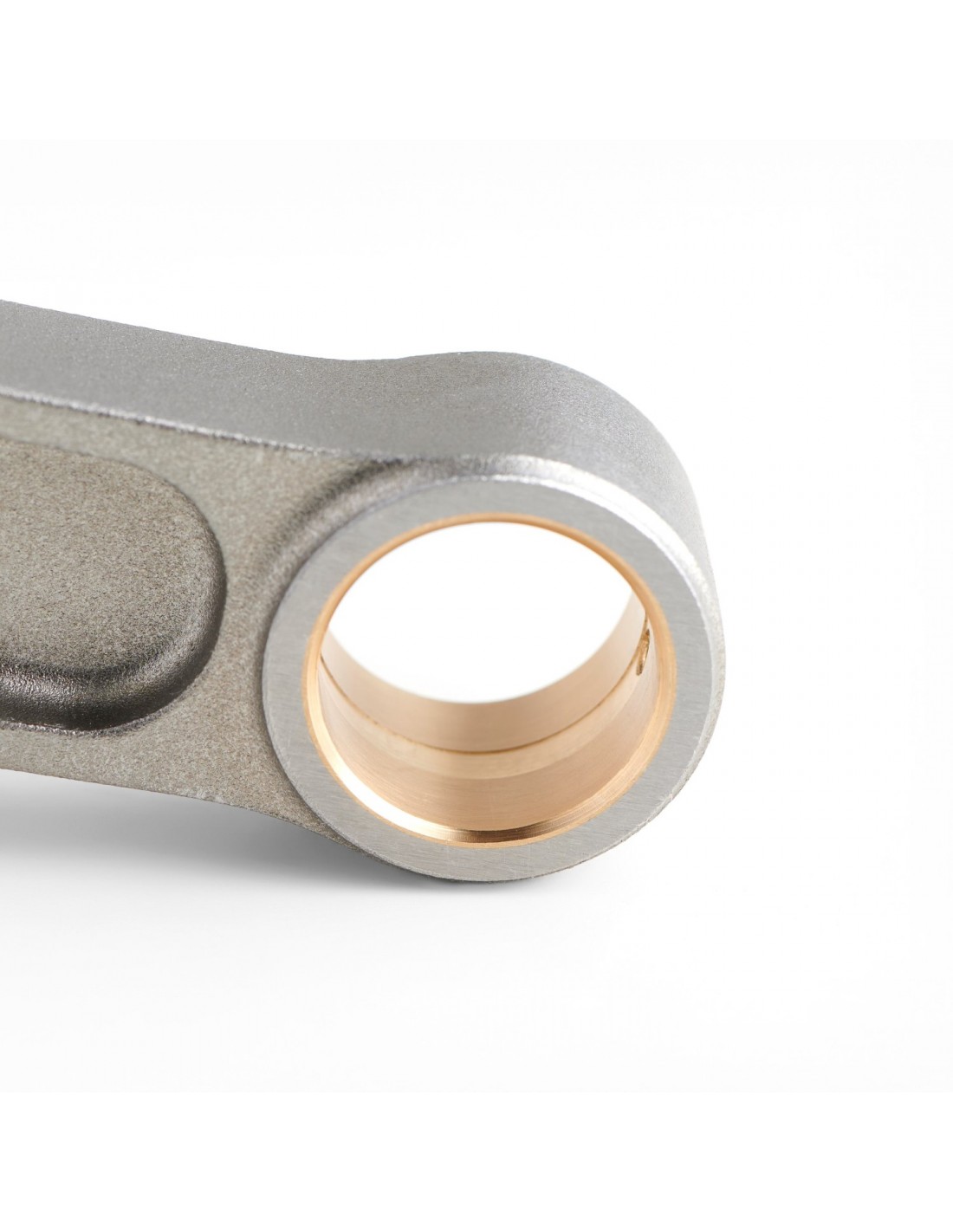

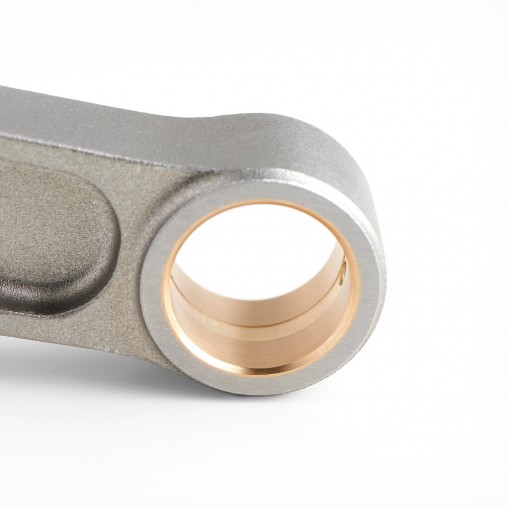

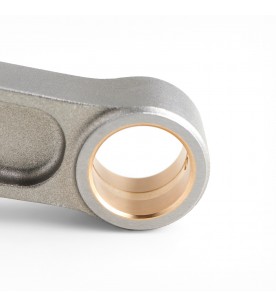

The I-Beam Connecting rods for Ford 2.0L Duratec are manufactured from 4340 high tensile steel, they are designed for high performance, extreme durability and extra rigidity. The bushings made from AMPCO 18 material for excellent resistance to wear and fatigue and have radial groove for oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.Each rod includes ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

  • Dowel sleeves for perfect fit and accurate re-assembling
  • Lipped Cap Relief for improved big-end integrity at extreme application
  • Grooves in Thrust Face for weight reduction
Technical Features of ZRP Connecting Rods
  • I-Beam Shape for extra rigidity
  • Two-Piece forging for great strength
  • Shot Peening for improved fatigue life
  • Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
  • Double ribbed caps for added support
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances, precise as much as 0.0002"
  • Center to center is maintained under .001" tolerance
  • Finite Element Analysis (FEA) Computer generated stress analysis of con rods
  • Optimal balancing for weight matched sets of ± 1gram
Shape
I-Beam
Material
High Tensile Steel 4340
Length
145.00
Small End
21.00
Bolt Size
3/8"
Application
2.5L Focus ST I5 Turbo
Big End
52.99
B.E Width
25.65
Set Of
5
Displacement
2.5L
Pin Size
21.00
Series
Standard
