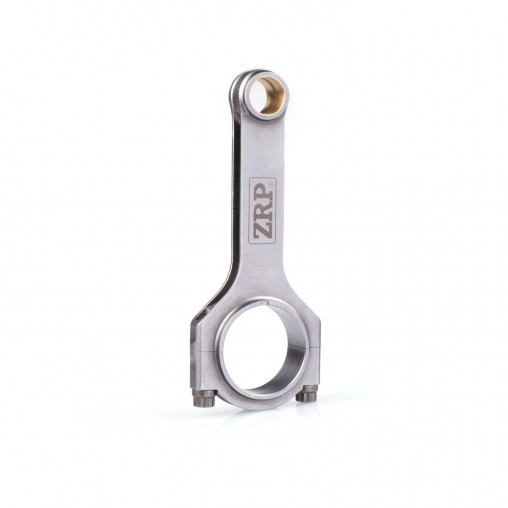

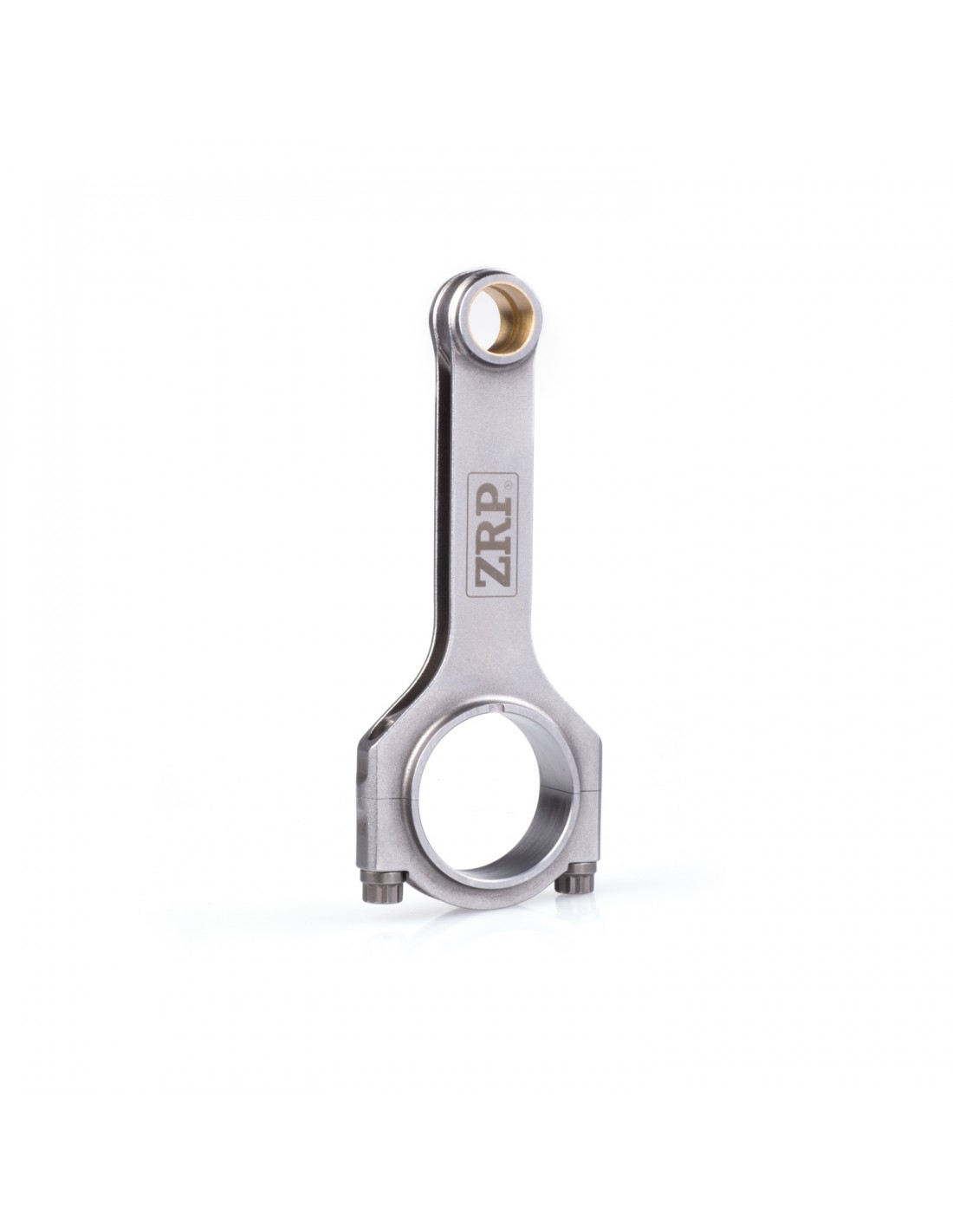

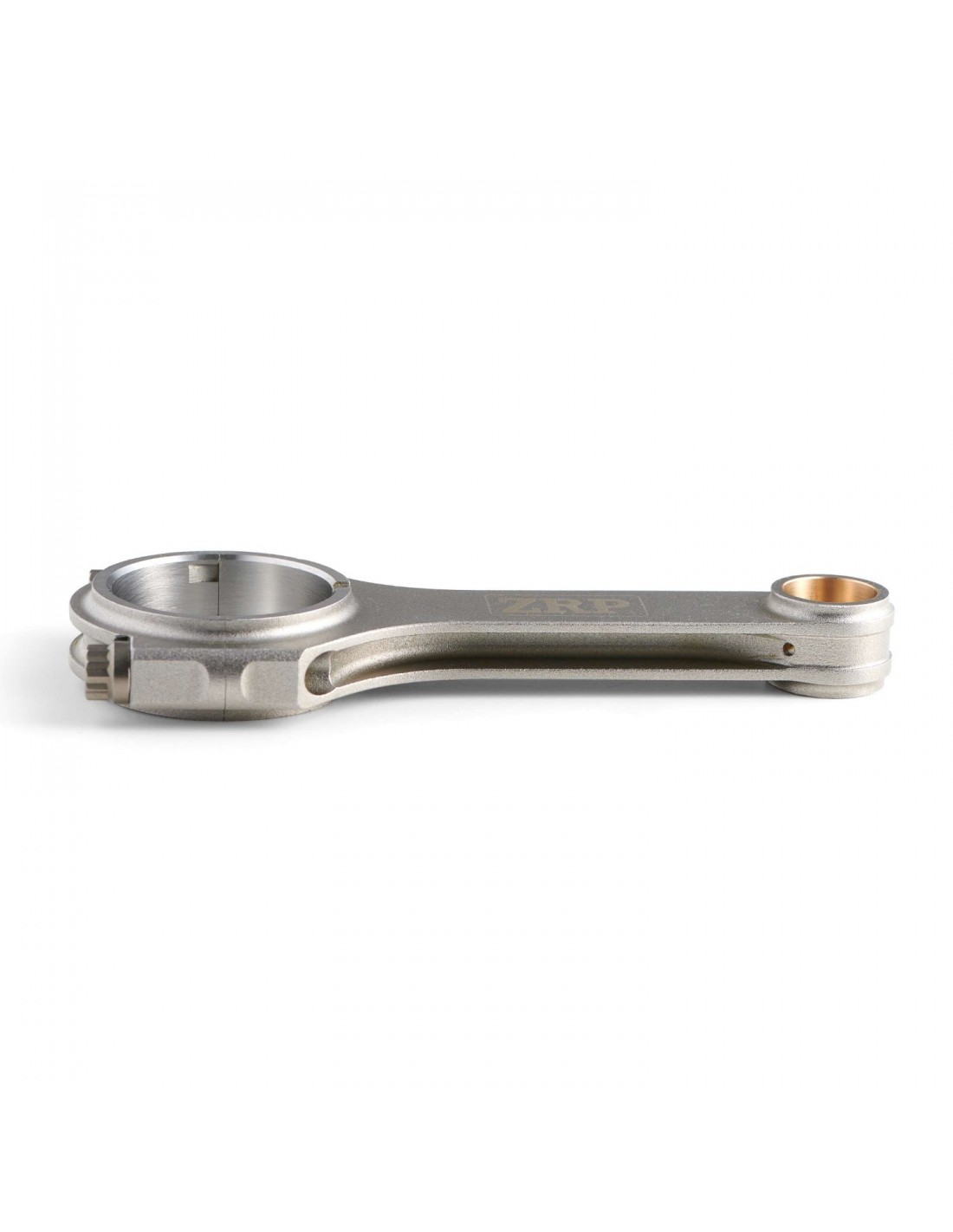

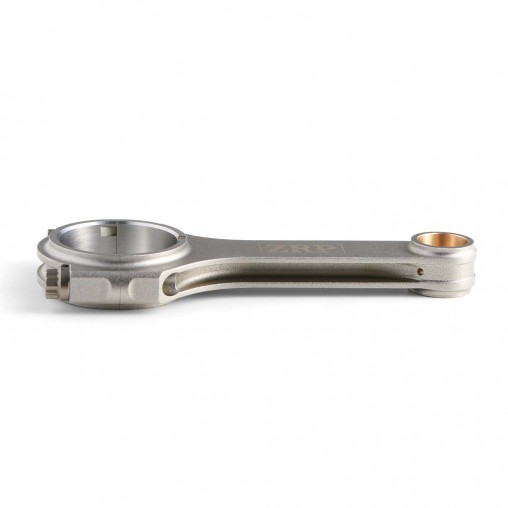

Honda F22 Connecting Rods with L19 bolts
Honda F22 Connecting Rods with L19 bolts
  • -132.08 €
Honda F22 Connecting Rods with L19 bolts
Honda F22 Connecting Rods with L19 bolts

Honda F22 Connecting Rods with L19 bolts

R-HON-015HL-L19
664.00 € -132.08 €
796.08 €
149.65mm x 23.00mm
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 664.0 € 2 installments x 332.0 € 3 installments x 221.3 € 4 installments x 166.0 € 5 installments x 132.8 € 6 installments x 110.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-HON-015HL-L19
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
Honda
Shape
H-Beam
Material
High Tensile Steel 4340
Length
149.65
Small End
23.00mm
Bolt Size
3/8"
Application
F22C
Big End
51.00
B.E Width
23.85
Set Of
4
Pin Size
23.00
Series
Standard
Engine
2.0L F20 / F22
Note
-

Honda F22C H-Beam Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].
  • Tapered Pin End – Suitable for O.E.M. pistons.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Lipped cap relief for improved big-end integrity at extreme application.
  • Double ribbed cap for added strength and durability.
  • Grooves in thrust face for weight reduction.
  • 2 piece forgings from high tensile steel 4340.
  • ZRP laser mark logo.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002?.
  • Center to center is held to 001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
Combination tested to over 750HP
