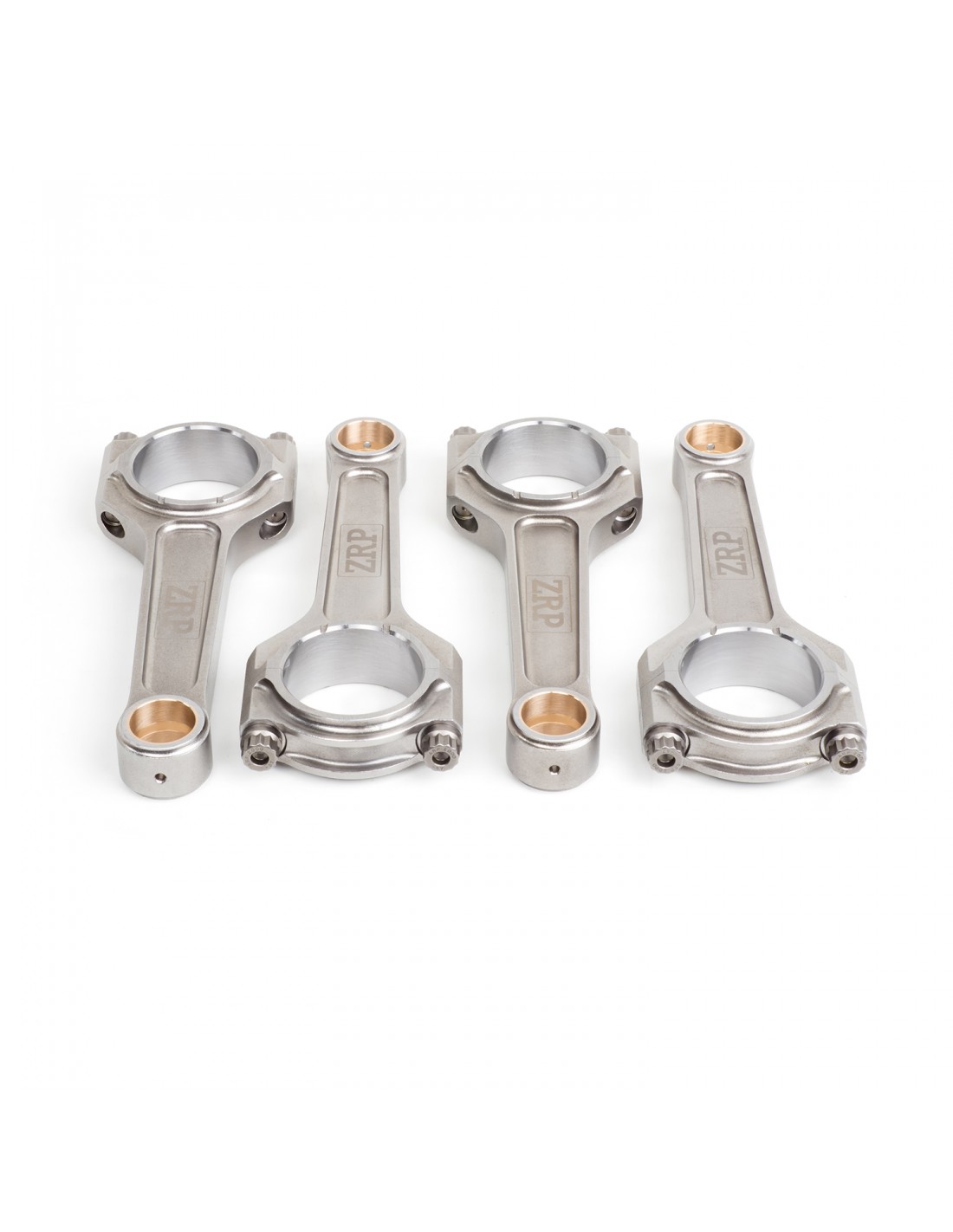

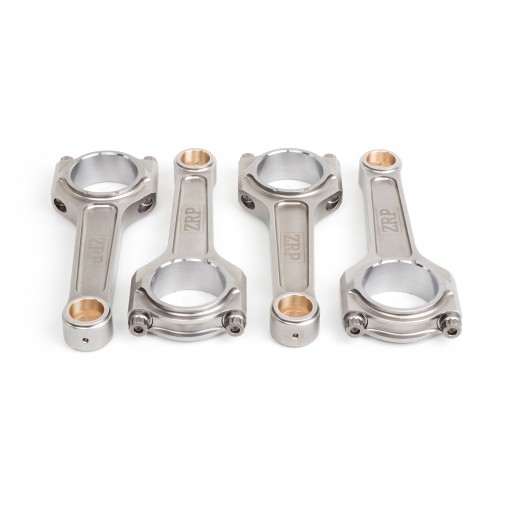

Mitsubishi 2.0L 4G63 / 4G63T HD Series Connecting Rods with L19 bolts

Name: Mitsubishi 2.0L 4G63 / 4G63T HD Series Connecting Rods with L19 bolts
Brand: ZRP
SKU: R-MIT-002-I-L19
Price: 748 EUR
Availability: InStock

Reference R-MIT-002-I-L19

748.00 € -122.48 €

870.48 €

150.00mm x 22.00mm

In Stock

1 installment x 748.0 € 2 installments x 374.0 € 3 installments x 249.3 € 4 installments x 187.0 € 5 installments x 149.6 € 6 installments x 124.7 €

Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy

Brand: Mitsubishi
Shape: I-Beam
Material: High Tensile Steel 4340
Length: 150.00
Small End: 22.0mm
Bolt Size: 3/8"
Application: 4G63 EVO 1-9
Big End: 48.00
B.E Width: 26.40
Set Of: 4
Pin Size: 22.00
Series: Heavy Duty
Engine: 2.0L 4G63
Note: ARP2000 cap fasteners - Upgrade option to L19 material

Mitsubishi 2.0L 4G63 / 4G63T HD Series Connecting Rods

ADDITIONAL FEATURES

Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

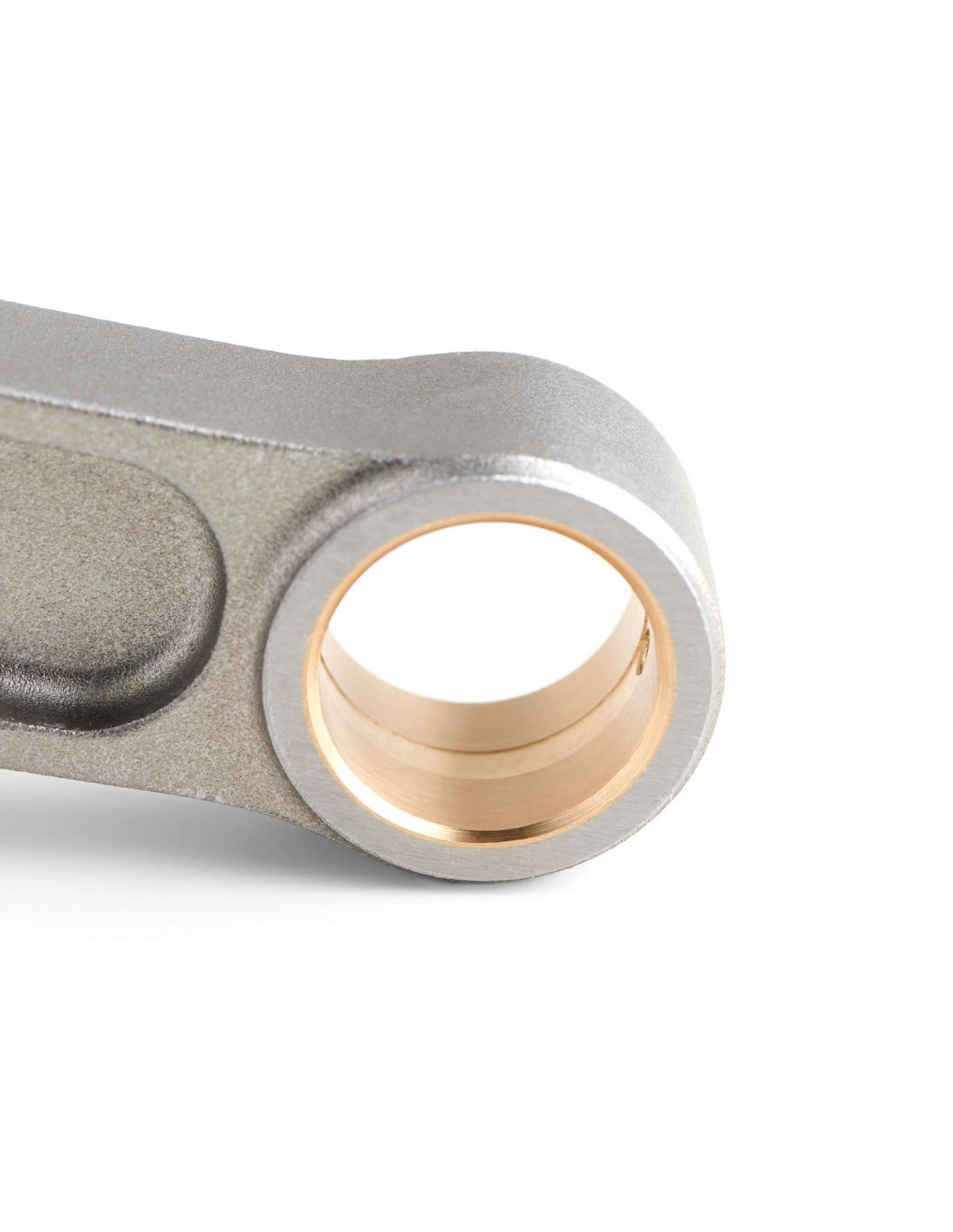

AMPCO 18 bushings for excellent resistance to wear and fatigue.
Bushings include radial groove for oil reservoir.
Dowel sleeves for perfect fit and accurate re-assembling.
Double ribbed cap for added strength and durability.
Dual grooves in thrust face for weight reduction.
I-Beam Shape for extra rigidity.
Heavy Duty series (H.D) rods for High HP/Boost applications.

For a detailed illustration of the features click here

TECHNICAL FEATURES

2 piece forgings from high tensile steel 4340
Shot Peening for improved fatigue life.
Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances as tight as 0.0002''
Center to center is a maintained to .001? tolerance
Finite Element Analysis FEA Computer generated stress analysis of con rods.
Bend and twist is tightly controlled.
Optimal balancing for weight matched sets ± 1gram.
