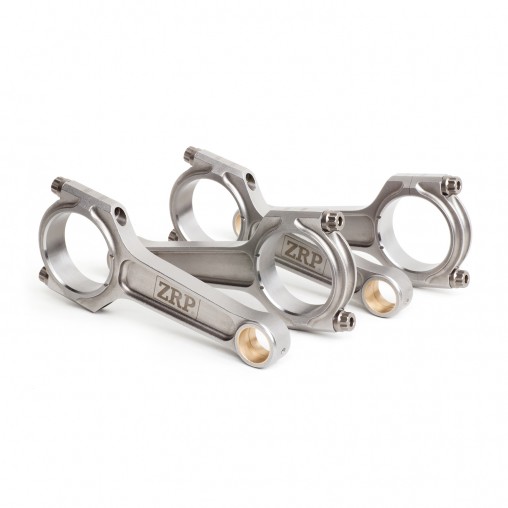

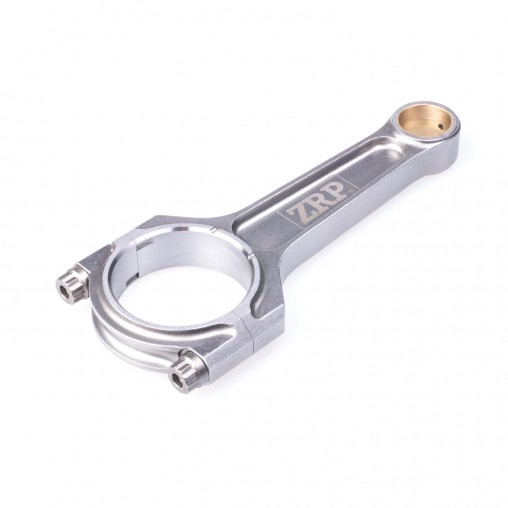

Mitsubishi 2.0L EVO X 4B11 HD Series Connecting Rods with L19 bolts
Mitsubishi 2.0L EVO X 4B11 HD Series Connecting Rods with L19 bolts
Mitsubishi 2.0L EVO X 4B11 HD Series Connecting Rods with L19 bolts
  • -149.76 €
Mitsubishi 2.0L EVO X 4B11 HD Series Connecting...
Mitsubishi 2.0L EVO X 4B11 HD Series Connecting...
Mitsubishi 2.0L EVO X 4B11 HD Series Connecting...

Mitsubishi 2.0L EVO X 4B11 HD Series Connecting Rods with L19 bolts

R-MIT-EN24-006-L19
748.00 € -149.76 €
897.76 €
143.71mm x 23.00mm
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 748.0 € 2 installments x 374.0 € 3 installments x 249.3 € 4 installments x 187.0 € 5 installments x 149.6 € 6 installments x 124.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-MIT-EN24-006-L19
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
Mitsubishi
Shape
I-Beam
Material
4340 EN24T High Tensile Steel
Length
143.71
Small End
23.00mm
Bolt Size
3/8"
Application
4B11 EVO 10
Big End
54.99
B.E Width
21.87
Set Of
4
Pin Size
23.00
Series
Heavy Duty
Engine
2.0L 4B11

Mitsubishi 2.0L EVO X 4B11 Heavy Duty Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

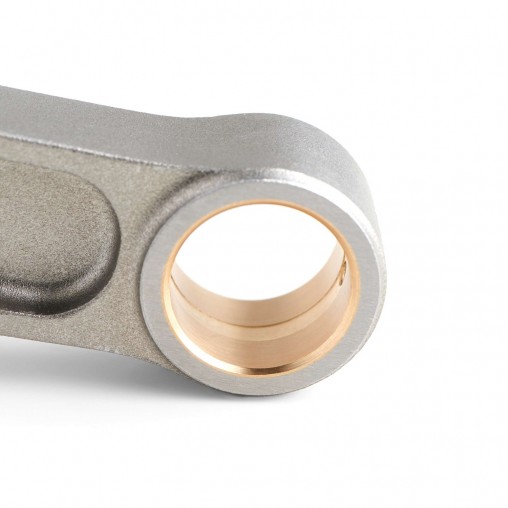

  • Aluminum – silicon/ bronze bushing with radial groove
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Double grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity
  • 2 piece forgings from high tensile steel 4340.
  • ZRP laser mark logo.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002?.
  • Center to center is held to 001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
Combination tested to over 750HP
