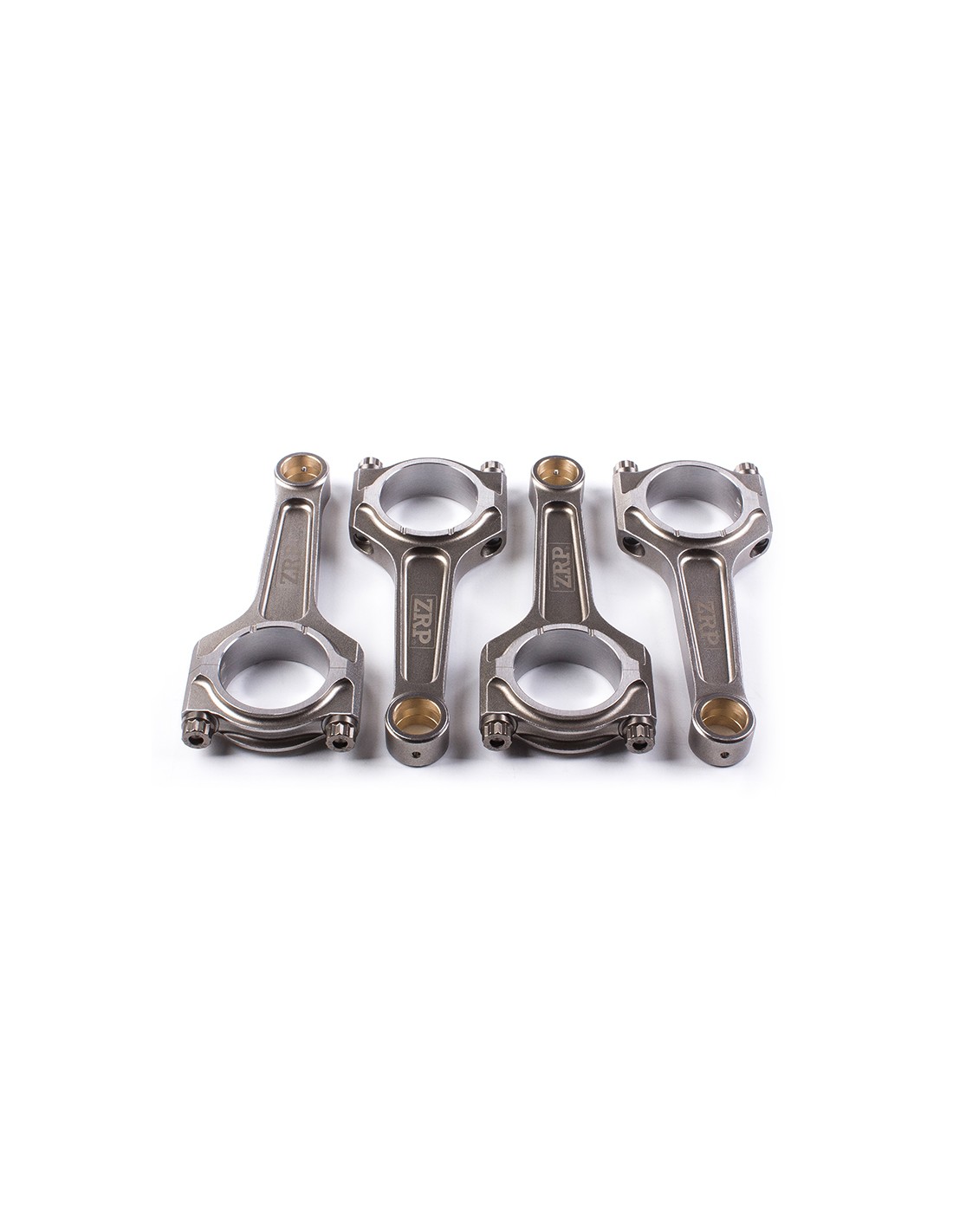

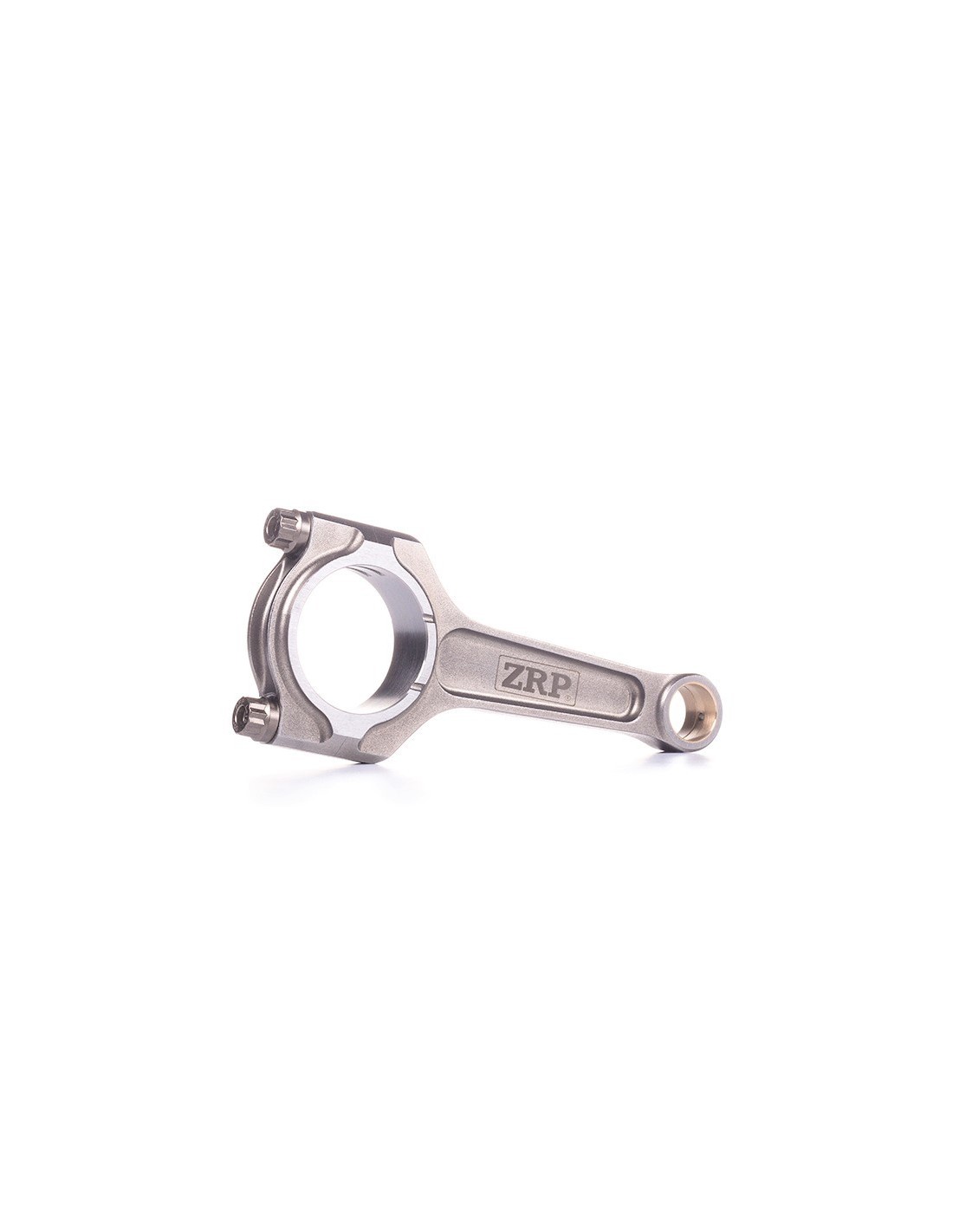

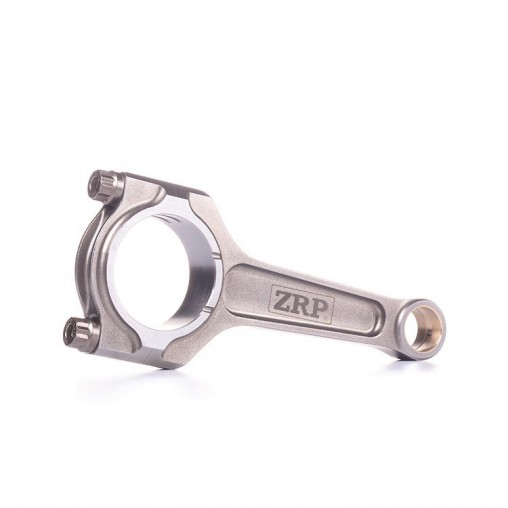

Opel 1.6L Turbo Z16LET Connecting Rods with L19 bolts
Opel 1.6L Turbo Z16LET Connecting Rods with L19 bolts
Opel 1.6L Turbo Z16LET Connecting Rods with L19 bolts
  • -136.40 €
Opel 1.6L Turbo Z16LET Connecting Rods with L19...
Opel 1.6L Turbo Z16LET Connecting Rods with L19...
Opel 1.6L Turbo Z16LET Connecting Rods with L19...

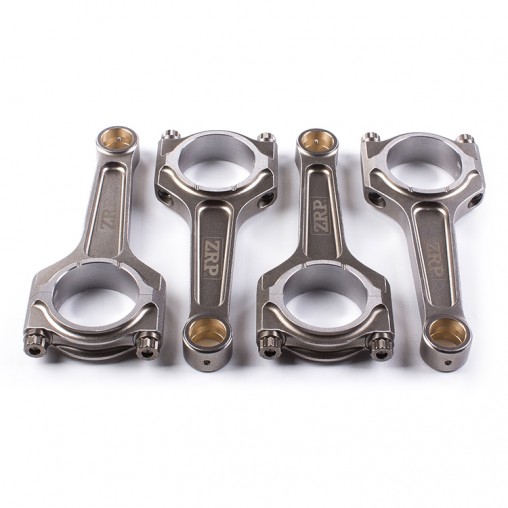

Opel 1.6L Turbo Z16LET Connecting Rods with L19 bolts

R-OPE-005-I-L19
682.00 € -136.40 €
818.40 €
129.75mm x 19.00mm
In Stock
Installments plan
Up to 6 installments with credit card
1 installment x 682.0 € 2 installments x 341.0 € 3 installments x 227.3 € 4 installments x 170.5 € 5 installments x 136.4 € 6 installments x 113.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 400€

60-days return policy
Stock Inquiry
Reference: R-OPE-005-I-L19
Product Category: Connecting Rods

Do you need more info about availability. Contact us directly!









Brand
Opel
Shape
I-Beam
Material
High Tensile Steel 4340
Length
129.75
Bolt Size
3/8"
Application
1.6L Turbo Z16LET (Corsa OPC)
Big End
46.00
B.E Width
21.90
Set Of
4
Pin Size
19.00
Series
Standard
Engine
1.6L Z16/A16
Note
Non-Tapered Pin End

Opel 1.6L Turbo Z16LET Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

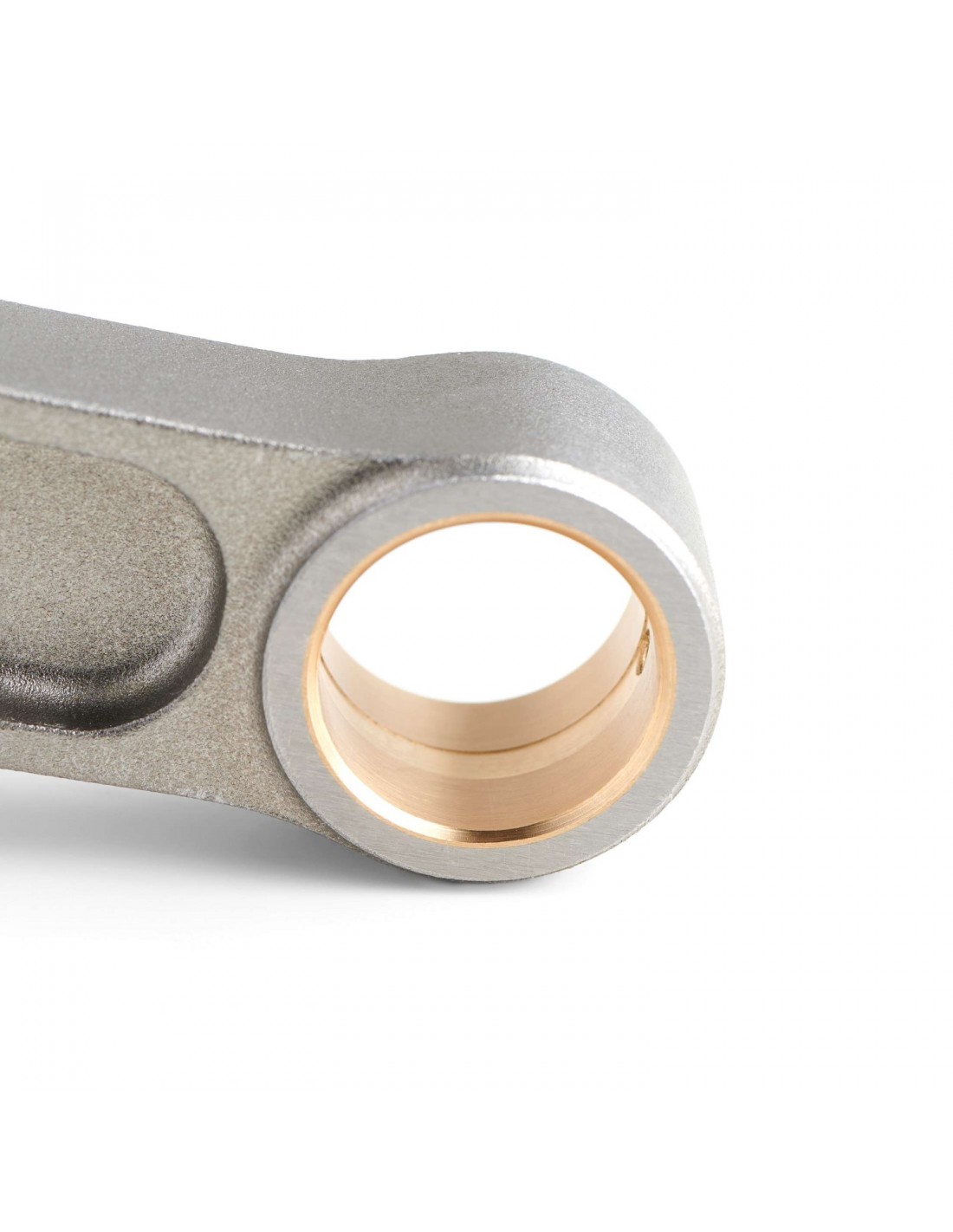

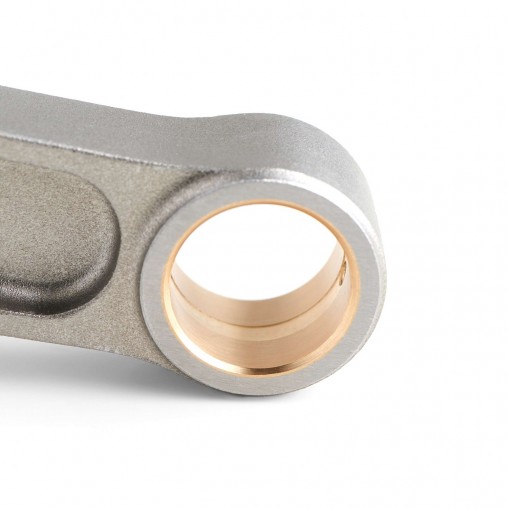

  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
