Volvo 1.9L 16v B4204T / B4194 (S40 / V40) Connecting Rods with L19 bolts
Volvo 1.9L 16v B4204T / B4194 (S40 / V40) Connecting Rods with L19 bolts
Volvo 1.9L 16v B4204T / B4194 (S40 / V40) Connecting Rods with L19 bolts
  • -112.00 €
  • New
Volvo 1.9L 16v B4204T / B4194 (S40 / V40)...
Volvo 1.9L 16v B4204T / B4194 (S40 / V40)...
Volvo 1.9L 16v B4204T / B4194 (S40 / V40)...

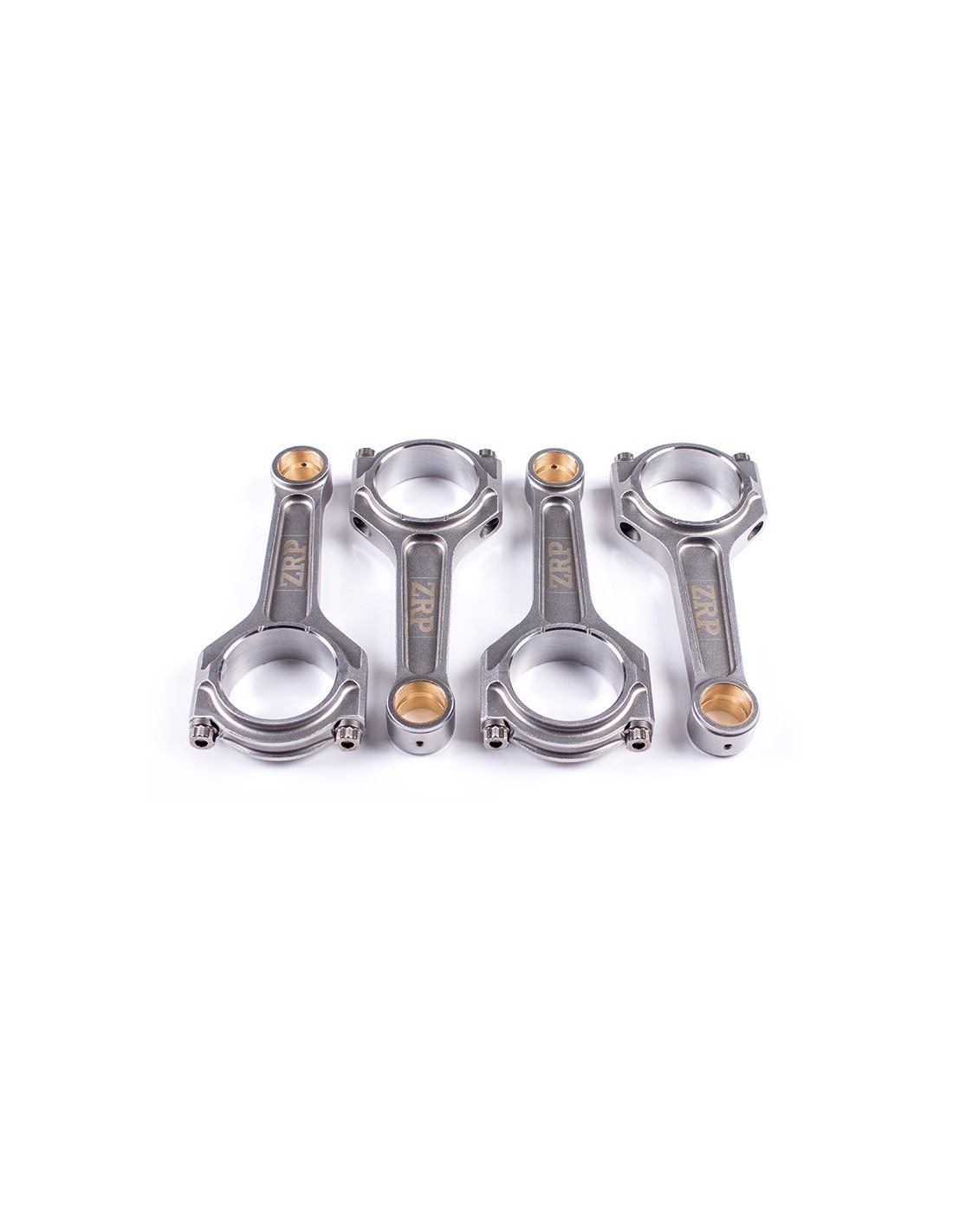

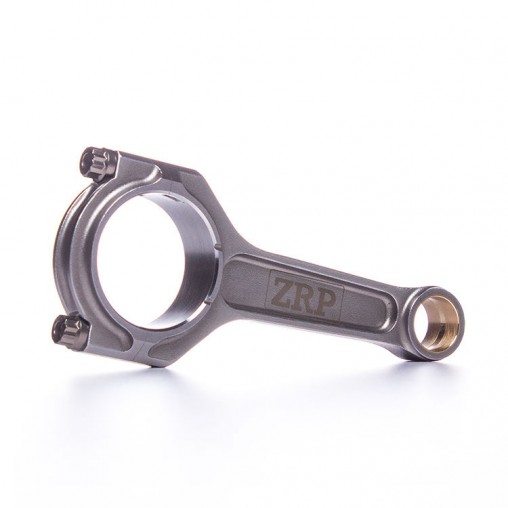

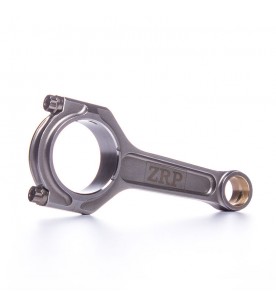

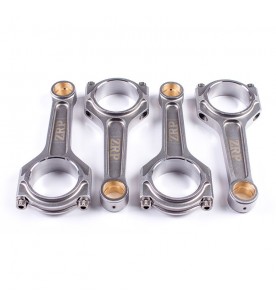

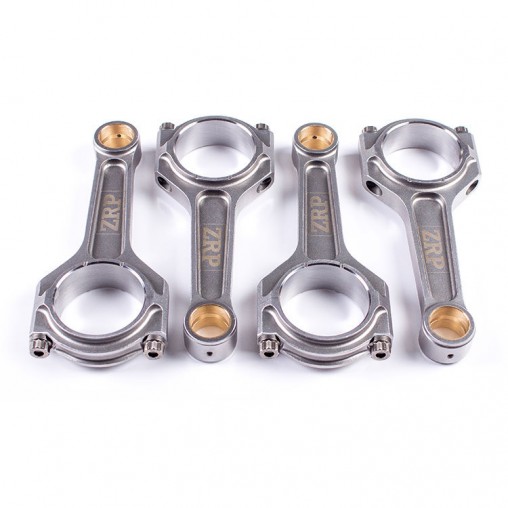

Volvo 1.9L 16v B4204T / B4194 (S40 / V40) Connecting Rods with L19 bolts

R-VOL-005-I-4-L19
682.00 € -112.00 €
794.00 €
139.50mm x 23.00mm
Upon Order
Installments plan
Up to 6 installments with credit card
1 installment x 795.0 € 2 installments x 397.5 € 3 installments x 265.0 € 4 installments x 198.8 € 5 installments x 159.0 € 6 installments x 132.5 €


Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy


Volvo B4204 / B4194 HD Series Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

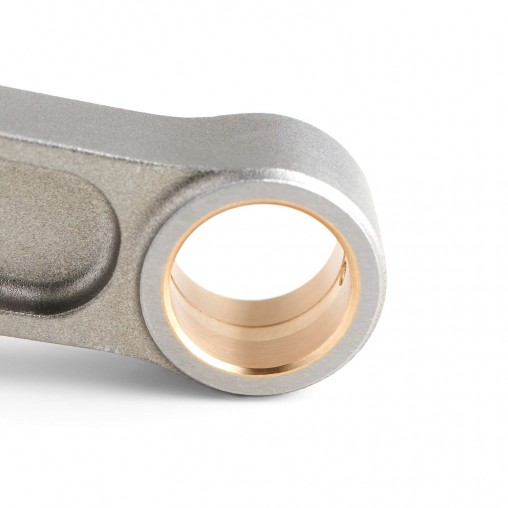

  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.




Shape
I-Beam
Material
High Tensile Steel 4340
Length
139.50
Bolt Size
3/8"
Application
1.9L 16v B4204T / B4194 (S40 / V40)
Big End
53.00
B.E Width
25.65
Set Of
4
Pin Size
23.00
Series
Standard
