Volvo 2.8L 24v B6284 (S80) Connecting Rods with L19 bolts
Volvo 2.8L 24v B6284 (S80) Connecting Rods with L19 bolts
  • -167.40 €
Volvo 2.8L 24v B6284 (S80) Connecting Rods with...
Volvo 2.8L 24v B6284 (S80) Connecting Rods with...

Volvo 2.8L 24v B6284 (S80) Connecting Rods with L19 bolts

R-VOL-005-I-6-L19
1,023.00 € -167.40 €
1,190.40 €
139.50mm x 23.00mm
Upon Order
Installments plan
Up to 6 installments with credit card
1 installment x 1,023.0 € 2 installments x 511.5 € 3 installments x 341.0 € 4 installments x 255.8 € 5 installments x 204.6 € 6 installments x 170.5 €


Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy

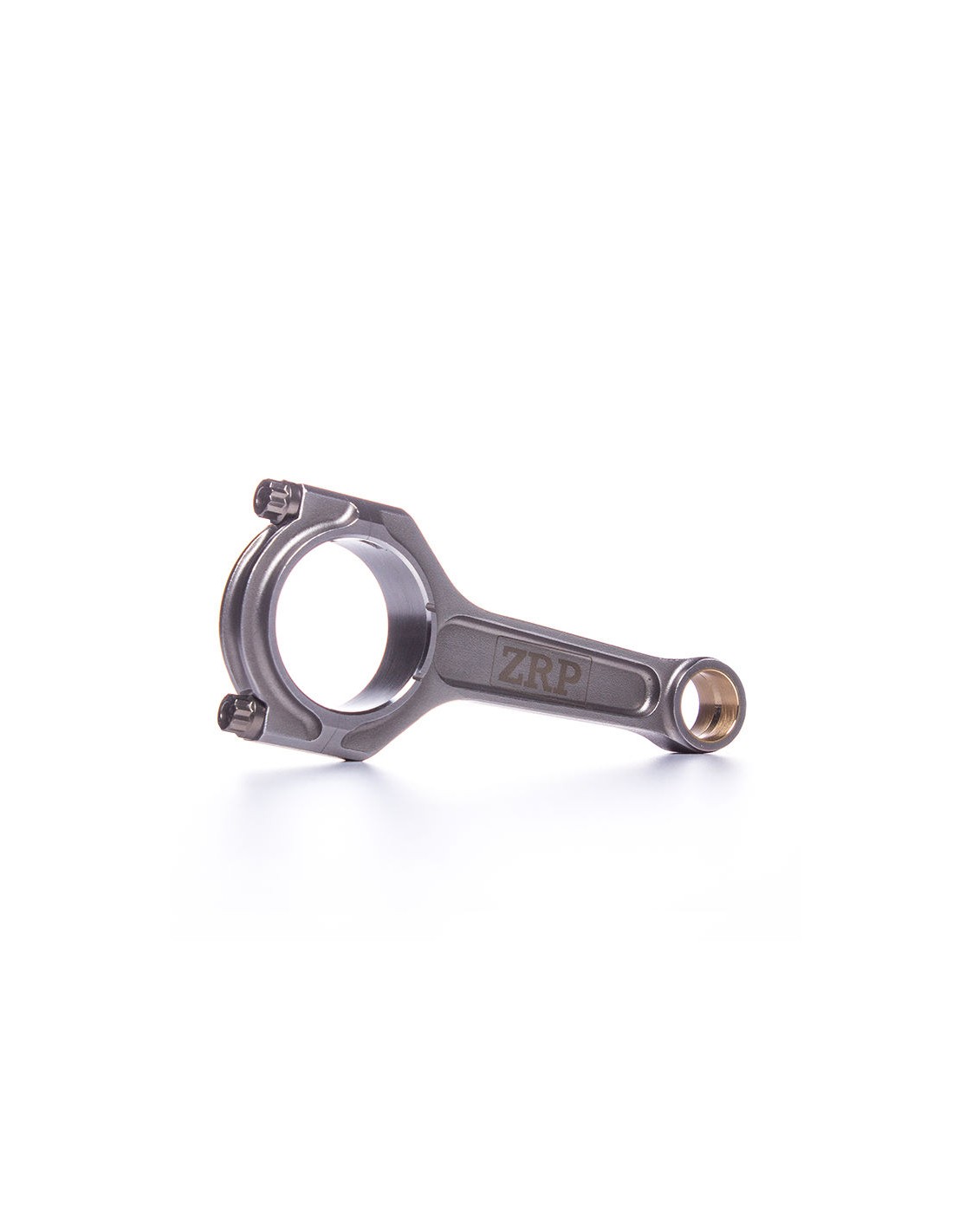

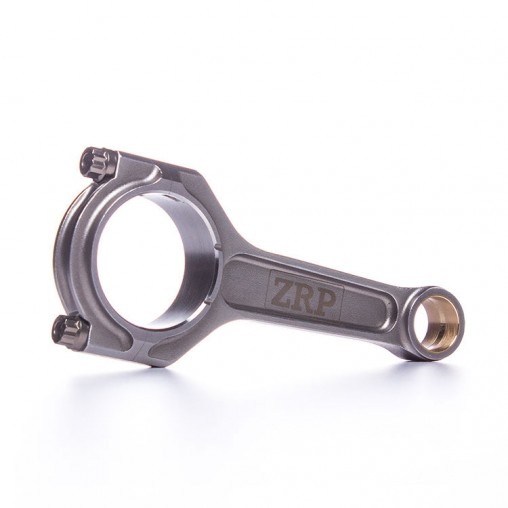

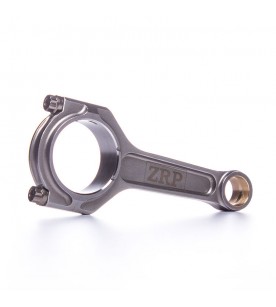

Volvo B6284 HD Series Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

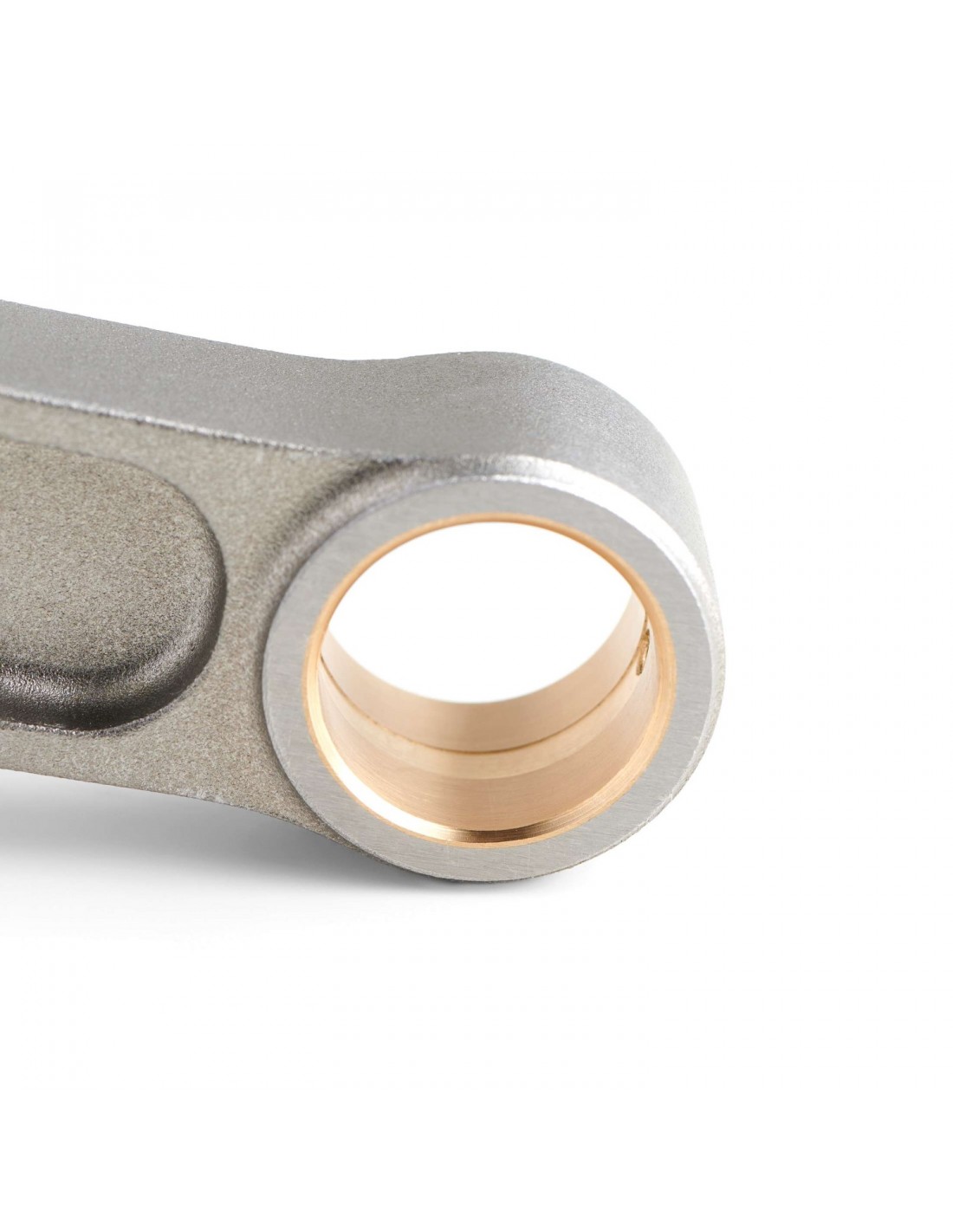

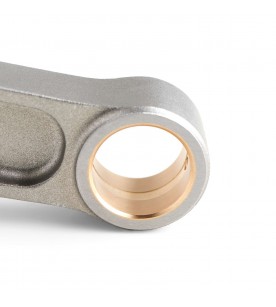

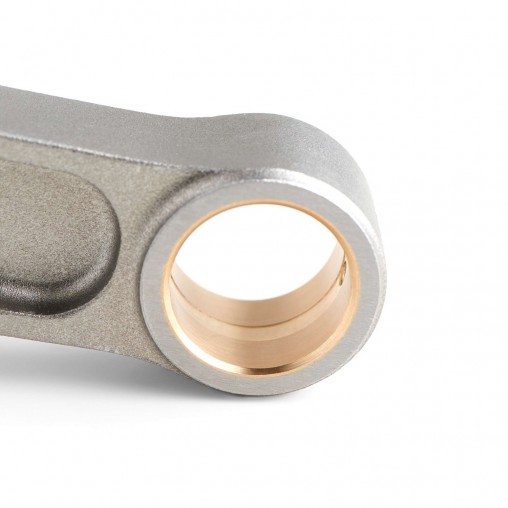

  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.





Brand
Volvo
Shape
I-Beam
Material
High Tensile Steel 4340
Length
139.50
Bolt Size
3/8"
Application
2.8L 24v B6284 (S80)
Big End
53.00
B.E Width
25.65
Set Of
6
Pin Size
23.00
Series
Standard
Engine
Other Models
Note
ARP2000 cap fasteners - Upgrade option to L19 material
