VW 2.0L 16v ABF Connecting Rods 159mmx21mm (Lighweight Design) with L19 bolts
R-VW-001-IL-L19
682.00 €
-112.00 €
794.00 €
159.00mm x 21.00mm
Fast Delivery
Low prices guarantee
Free Shipping over 100€
60-days return policy

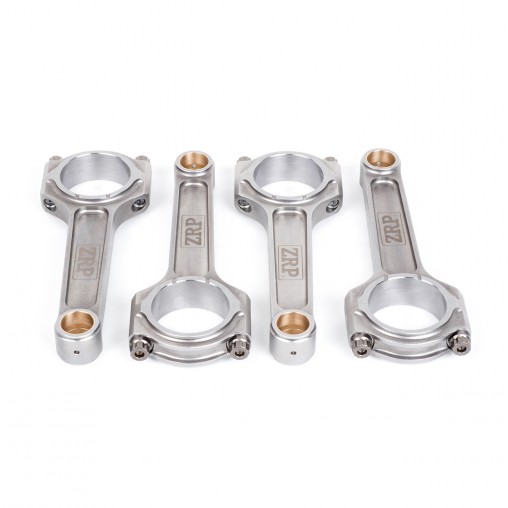

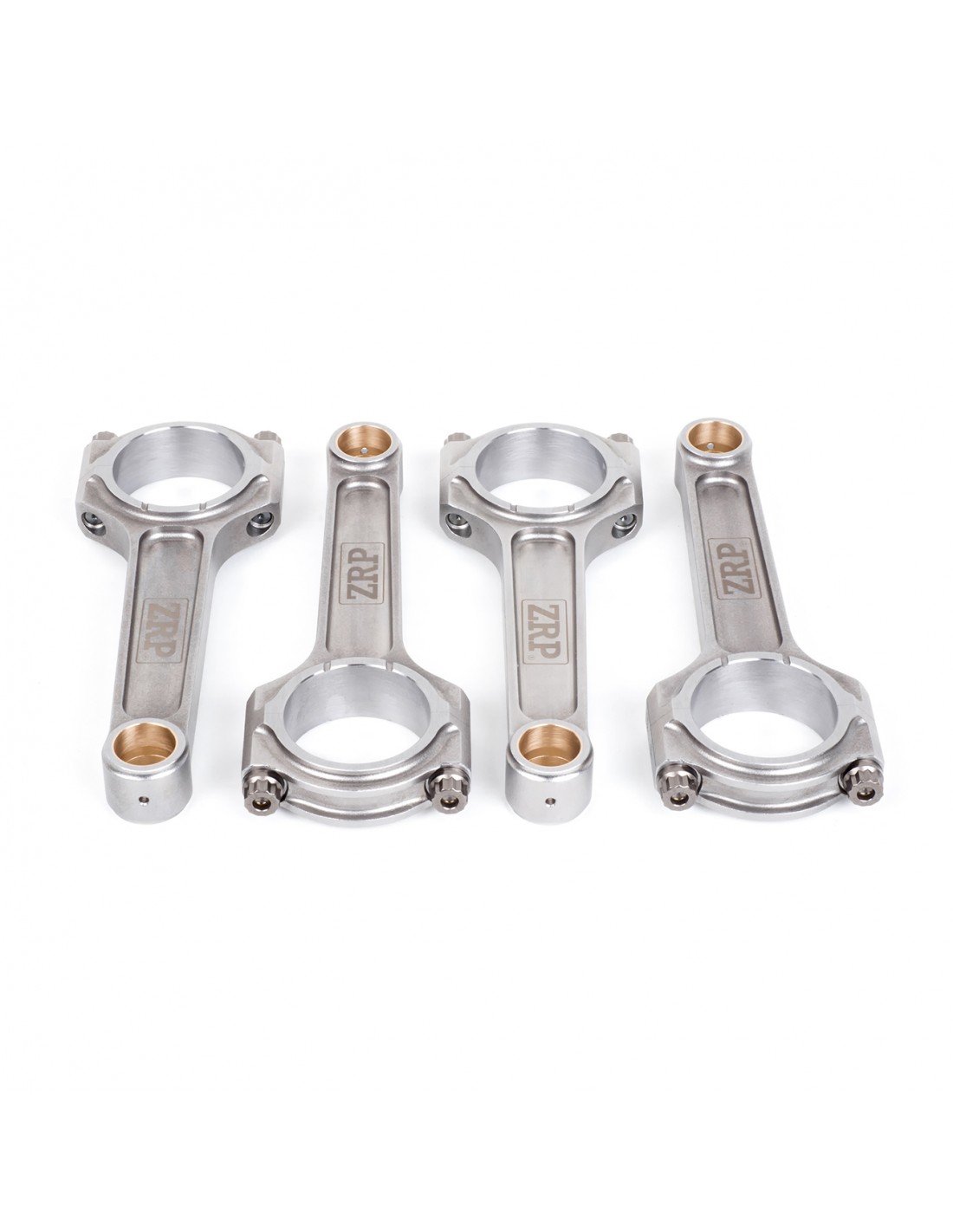

VW 2.0L 16v ABF Connecting Rods 159mmx21mm
ADDITIONAL FEATURES
- Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].

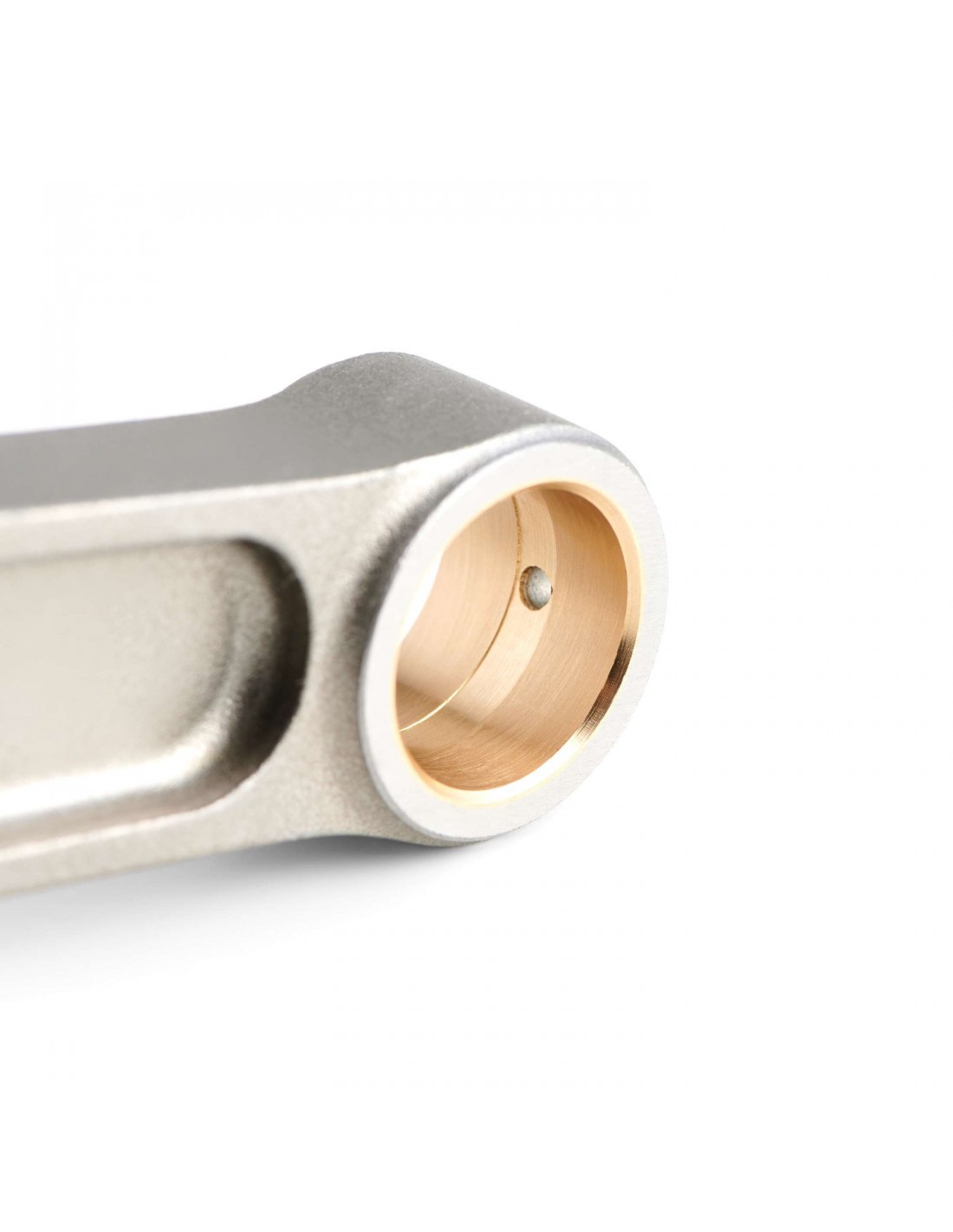

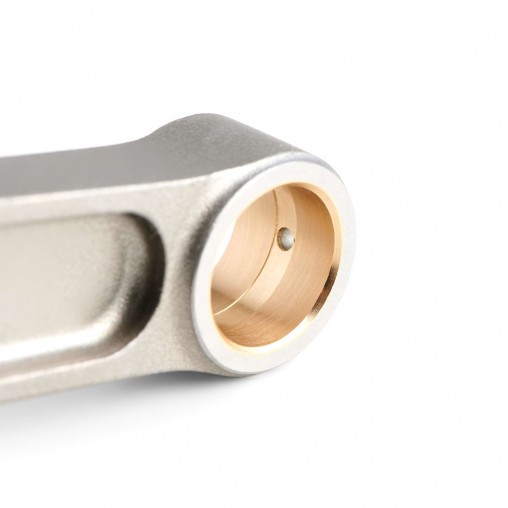

- AMPCO 18 bushings for excellent resistance to wear and fatigue.
- Bushings include radial groove for oil reservoir.
- Dowel sleeves for perfect fit and accurate re-assembling.
- Double ribbed cap for added strength and durability.
- Dual Grooves in thrust face for weight reduction.
- I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here
TECHNICAL FEATURES
- 2 piece forgings from high tensile steel 4340
- Shot Peening for improved fatigue life.
- Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
- Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
- CNC machining for superior tolerances as tight as 0.0002''
- Center to center is a maintained to .001? tolerance
- Finite Element Analysis FEA Computer generated stress analysis of con rods.
- Bend and twist is tightly controlled.
- Optimal balancing for weight matched sets ± 1gram.
- Shape
- I-Beam
- Material
- High Tensile Steel 4340
- Length
- 159.00
- Small End
- 21.00mm
- Bolt Size
- 3/8"
- Application
- 2.0L 16v ABF
- Big End
- 50.60
- B.E Width
- 24.89
- Set Of
- 4
- Pin Size
- 21.00
- Series
- -
