Watercraft Sea Doo 1500 XRT / GTX / XRP Connecting Rods with L19 bolts
Watercraft Sea Doo 1500 XRT / GTX / XRP Connecting Rods with L19 bolts
  • -111.60 €
Watercraft Sea Doo 1500 XRT / GTX / XRP...
Watercraft Sea Doo 1500 XRT / GTX / XRP...

Watercraft Sea Doo 1500 XRT / GTX / XRP Connecting Rods with L19 bolts

R-SEA-001-I-L19
682.00 € -111.60 €
793.60 €
120.10mm x 23.02mm
Upon Order
Installments plan
Up to 6 installments with credit card
1 installment x 682.0 € 2 installments x 341.0 € 3 installments x 227.3 € 4 installments x 170.5 € 5 installments x 136.4 € 6 installments x 113.7 €


Fast Delivery

Low prices guarantee

Free Shipping over 100€

60-days return policy

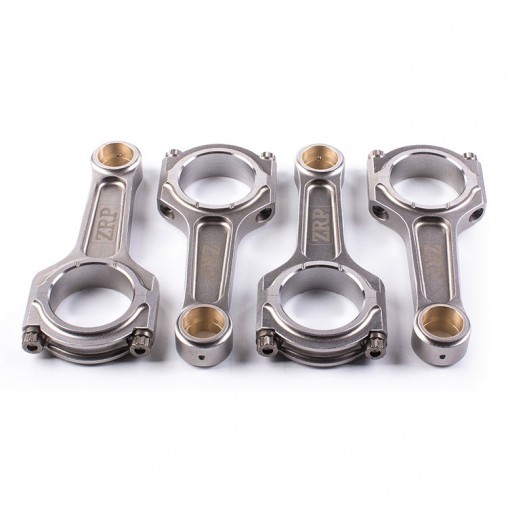

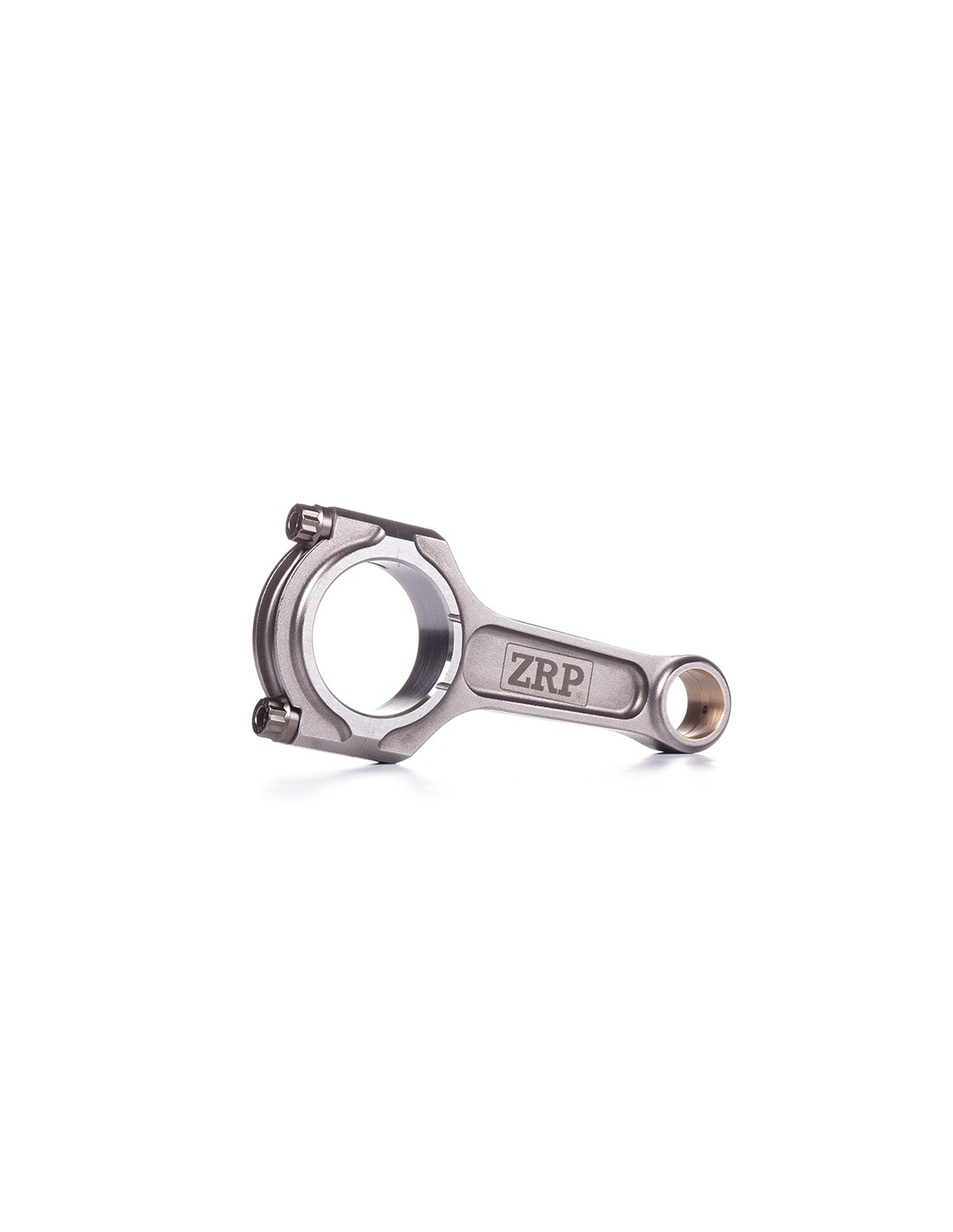

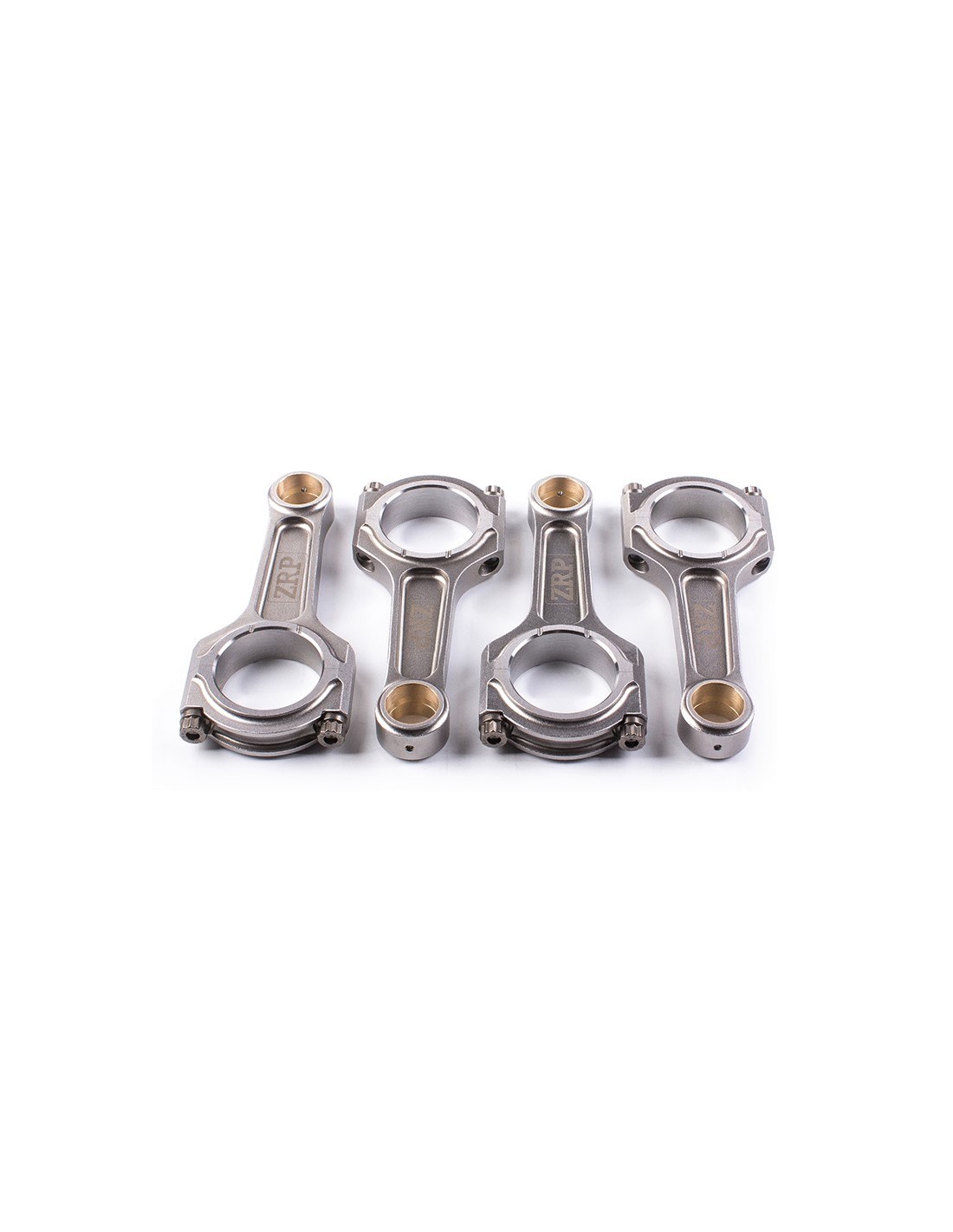

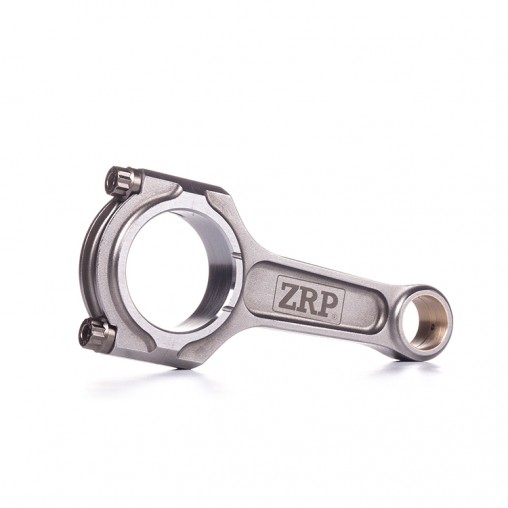

Watercraft Sea Doo 1500 XRT / GTX / XRP Connecting Rods

ADDITIONAL FEATURES

  • Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].
  • AMPCO 18 bushings for excellent resistance to wear and fatigue.
  • Bushings include radial groove for oil reservoir.
  • Dowel sleeves for perfect fit and accurate re-assembling.
  • Double ribbed cap for added strength and durability.
  • Dual Grooves in thrust face for weight reduction.
  • I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here

TECHNICAL FEATURES

  • 2 piece forgings from high tensile steel 4340
  • Shot Peening for improved fatigue life.
  • Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
  • Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
  • CNC machining for superior tolerances as tight as 0.0002''
  • Center to center is a maintained to .001? tolerance
  • Finite Element Analysis FEA Computer generated stress analysis of con rods.
  • Bend and twist is tightly controlled.
  • Optimal balancing for weight matched sets ± 1gram.
Brand
Sea-Doo
Shape
I-Beam
Material
High Tensile Steel 4340
Length
120.10
Bolt Size
3/8"
Application
Sea Doo - 1500 XRT / GTX / XRP
Big End
48.01
B.E Width
21.97
Set Of
4
Pin Size
23.02
Series
Standard
Engine
Other Models
Note
-
