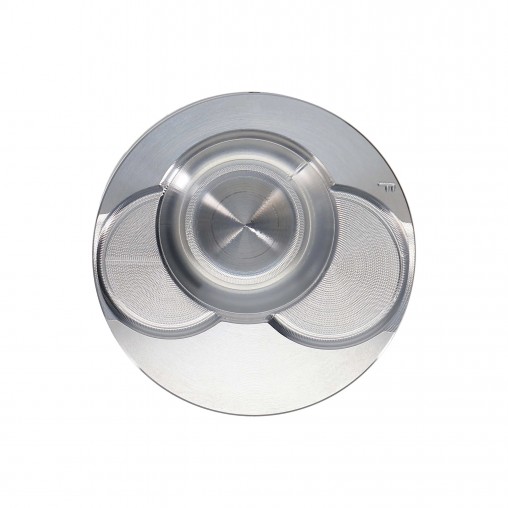

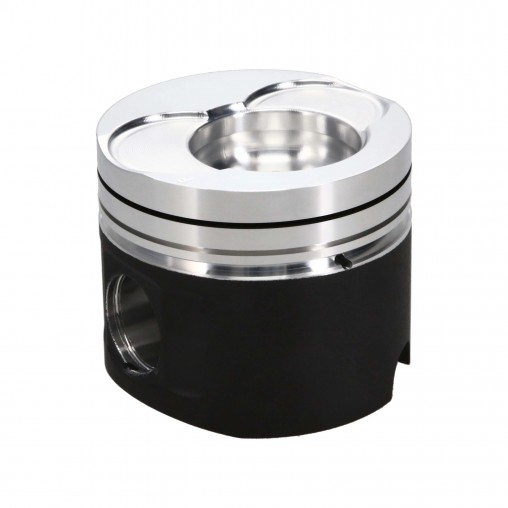

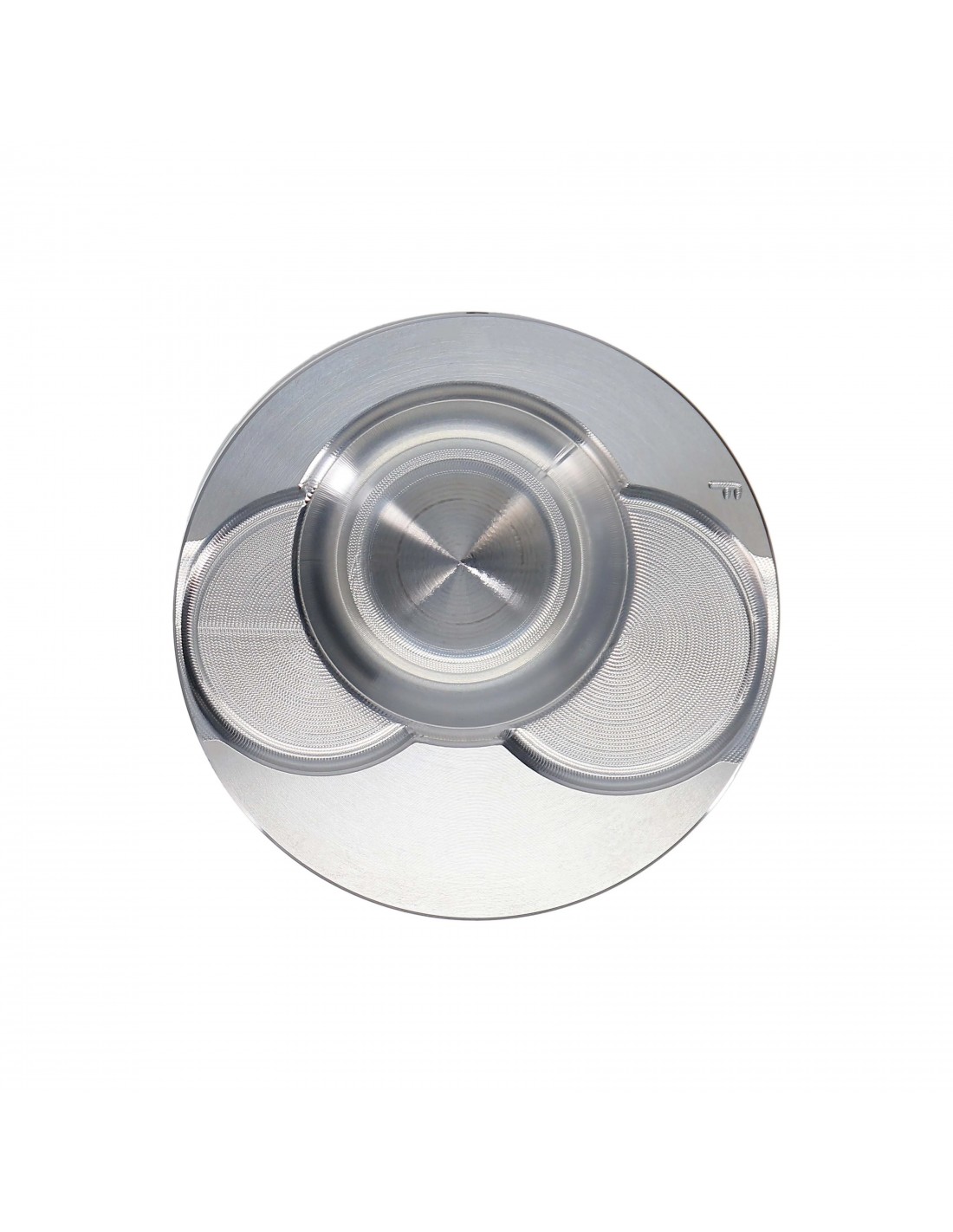

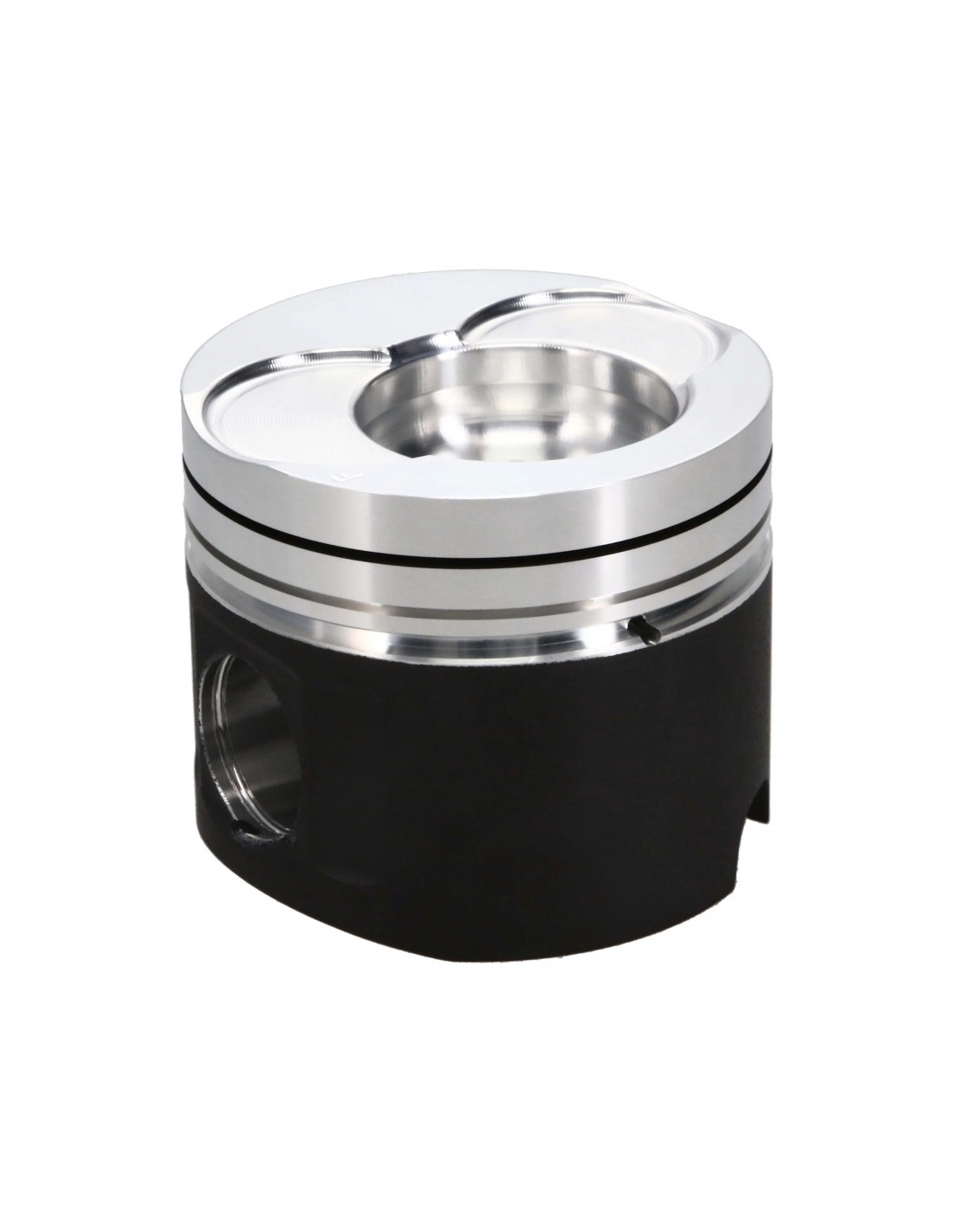

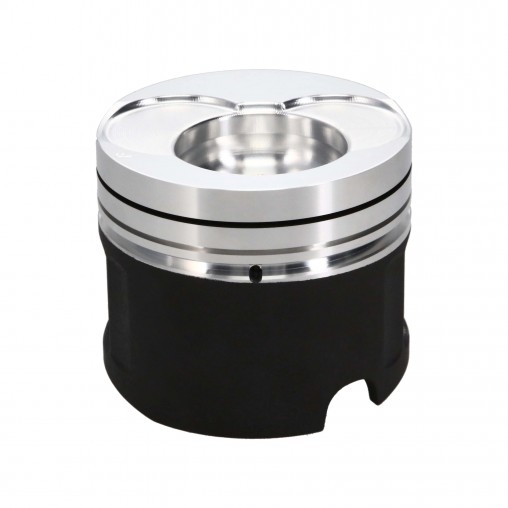

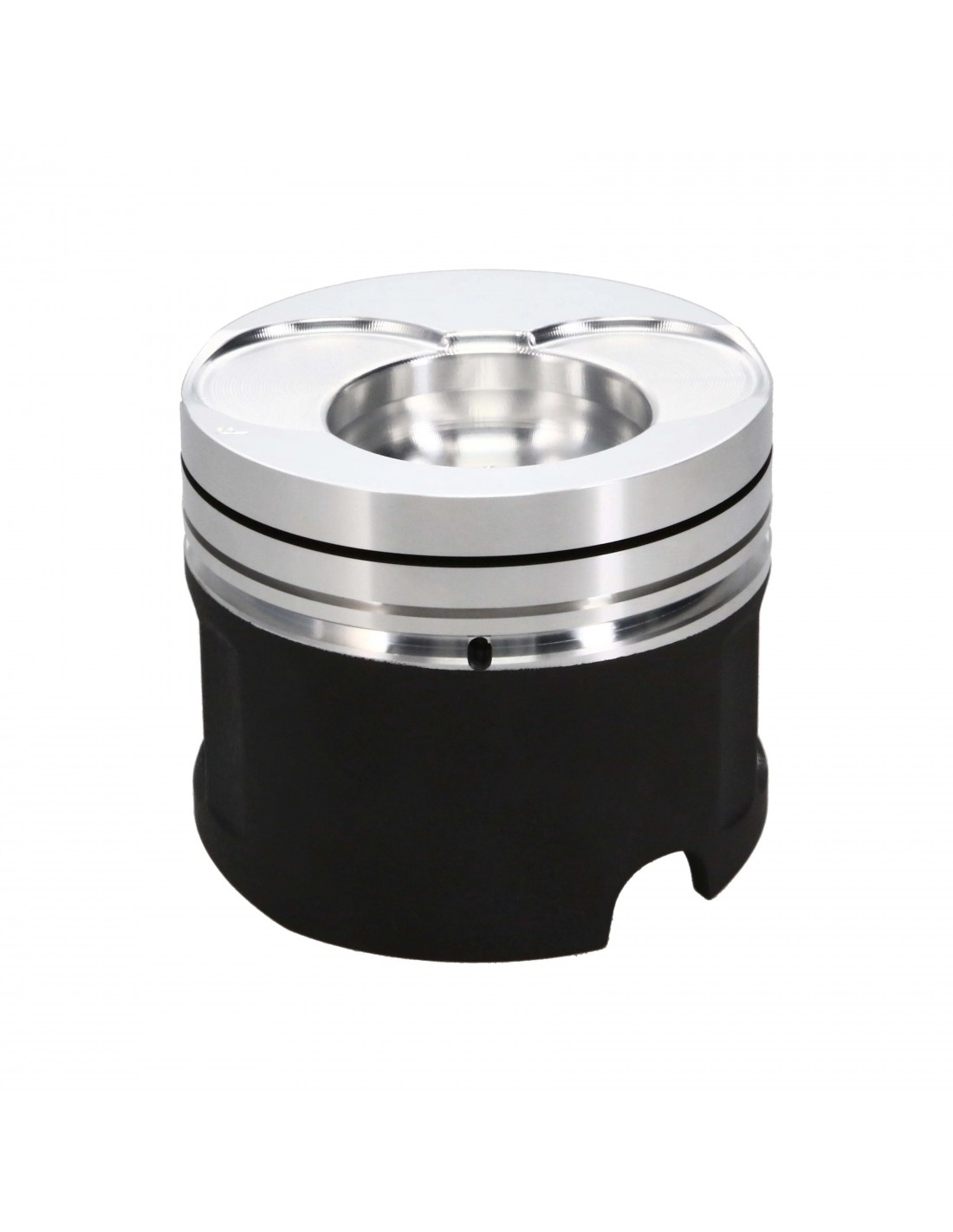

Audi / VW 1.9L-2.0L TDI Diesel 81.00mm 16.2:1 Diamond Forged Pistons
38310-4-H
1,670.00 €
81.00mm / CR 16.2:1
Fast Delivery
Low prices guarantee
Free Shipping over 400€
60-days return policy
Stock Inquiry
Reference: 38310-4-H
Product Category: Forged Pistons
- Brand
- Audi, Volkswagen
- Material
- 2618
- Stroke
- 95.5mm
- Comp. Ratio
- 16.2:1
- Dome
- -27.6cc
- Bore Size
- 81.00
- Set Of
- 1
- Pin Size
- 26.00mm
- Engine
- 1.9L TDI, 2.0L TDI 16V, 1.9L TDI 8v
The Audi / VW 1.9L/2.0L Diesel pistons are made by Diamond Racing USA. They are built as tough as can be to withstand the vigorous demands of racing. No matter how much boost pressure you are running or how high you are revving, these pistons will take it and ask for more! Check the individual features for your application below.
Product Features and Design
- 2618 Low-silicon / High expansion alloy for High HP/Boost applications
- Round skirt design with bottom reinforcing band
- 3D under crown milling to ensure minimal weight without compromising strength.
- 3D milling on piston crowns for ready to install finish
- Over size valve pockets for larger than stock valves and clip cuts on the edge of the pistons
- Window milling, reduce piston overall weight while maintaining its strength and structural integrity
- Lateral gas ports for better ring seal
- Offset pins for quiet operation
- Total Seal Pro-Select ring set 1.00mm x 1.20mm x 2.00mm
- Tool Steel H-13 alloy pins (Rockwell hardness around Rc54) Wall Thick. 6.65mm
